PLC-BSP-230UC/21HC

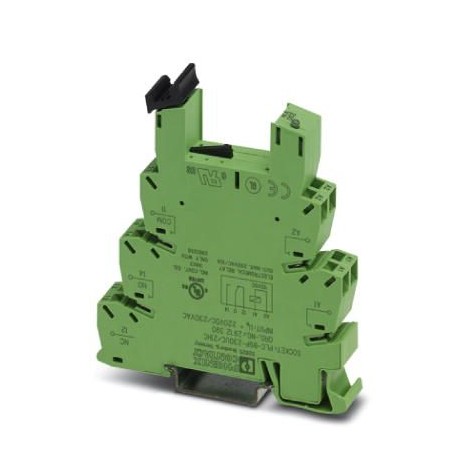

PLC-BSP-230UC/21HC 2912390 PHOENIX CONTACT Relay base
$0.00USD
4230 in stock
Key Specifications
GTIN:4046356050807
Note:Made to Order (non-returnable)
Orderkey:2912390
Depth (Note):94 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356050807 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2912390 |
| Depth (Note) | 94 mm |
| Packing unit | 10 pc |
| Width (Note) | 14 mm |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Input data) | Input side |
| Stripping length (Input data) | 8 mm |
| Connection method (Input data) | Spring-cage connection |
| Color (Connection data, output side) | green |
| Weight per Piece (excluding packing) | 52.170 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Protective circuit (Ambient conditions) | Bridge rectifier |
| Conductor cross section AWG (Input data) | 26 ... 14 |
| Conductor cross section solid (Input data) | 0.14 mm² ... 2.5 mm² |
| Connection in acc. with standard (General) | CUL |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 55 °C |
| Conductor cross section flexible (Input data) | 0.14 mm² ... 2.5 mm² |
| Connection name (Connection data, input side) | Output side |
| Nominal input voltage UN (Ambient conditions) | 230 V AC/DC |
| Operating mode (Connection data, output side) | 100% operating factor |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Stripping length (Connection data, input side) | 8 mm |
| Connection method (Connection data, input side) | Spring-cage connection |
| Flammability rating according to UL 94 (General) | V0 |
| Mounting position (Connection data, output side) | any |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Assembly instructions (Connection data, output side) | In rows with zero spacing |
| Conductor cross section AWG (Connection data, input side) | 26 ... 14 |
| Conductor cross section solid (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
