PLC-BSP-230UC/21/SO46

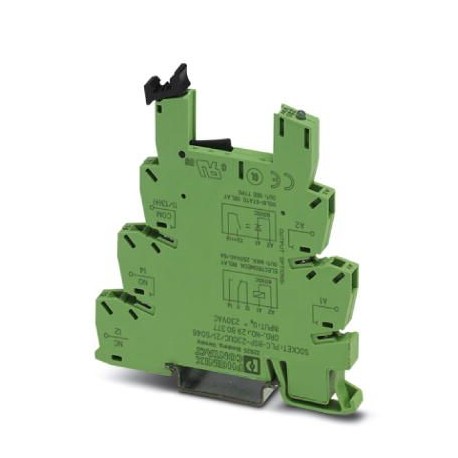

PLC-BSP-230UC/21/SO46 2980377 PHOENIX CONTACT Relay base
$0.00USD
3204 in stock
Key Specifications
GTIN:4017918895754
Note:Made to Order (non-returnable)
Orderkey:2980377
Catalog page:Page 334 (C-7-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918895754 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2980377 |
| Catalog page | Page 334 (C-7-2013) |
| Depth (Note) | 94 mm |
| Packing unit | 10 pc |
| Width (Note) | 6.2 mm |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | RCZ filter RCZ filter |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Output data) | Input side |
| Stripping length (Output data) | 8 mm |
| (Connection data, output side) | RCZ filter RCZ filter |
| Connection method (Output data) | Spring-cage connection |
| Compatible components (Input data) | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1 |
| Status display (Ambient conditions) | LED |
| Color (Connection data, output side) | green |
| Weight per Piece (excluding packing) | 27.000 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Protective circuit (Ambient conditions) | Bridge rectifier Bridge rectifier |
| Conductor cross section AWG (Output data) | 26 ... 14 |
| Connection in acc. with standard (General) | CUL |
| Conductor cross section solid (Output data) | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Typical release voltage (Ambient conditions) | 80 V AC |
| Connection name (Connection data, input side) | Output side |
| Nominal input voltage UN (Ambient conditions) | 230 V AC |
| Operating mode (Connection data, output side) | 100% operating factor |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible (Output data) | 0.14 mm² ... 2.5 mm² |
| Stripping length (Connection data, input side) | 8 mm |
| Connection method (Connection data, input side) | Spring-cage connection |
| Flammability rating according to UL 94 (General) | V0 |
| Mounting position (Connection data, output side) | any |
| Protective circuit (Connection data, output side) | Bridge rectifier Bridge rectifier |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Assembly instructions (Connection data, output side) | In rows with zero spacing |
| Conductor cross section AWG (Connection data, input side) | 26 ... 14 |
| Conductor cross section solid (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
| Input voltage range in reference to UN (Ambient conditions) | 0.78 ... 1.14 |
| Conductor cross section flexible (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
