PLC-BSC- 48DC/21HC/H

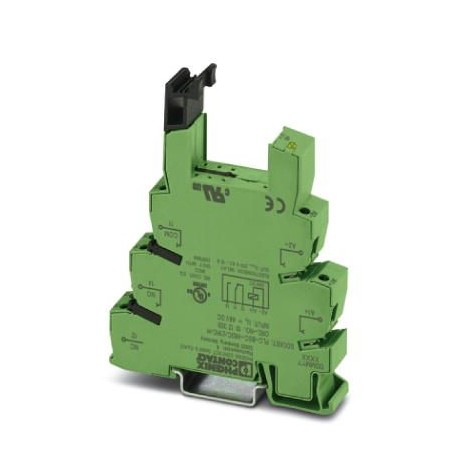

PLC-BSC- 48DC/21HC/H 1012309 PHOENIX CONTACT Relay base
$0.00USD
4374 in stock
Key Specifications
GTIN:4055626489254
Note:Made to Order (non-returnable)
Orderkey:1012309
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626489254 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1012309 |
| Packing unit | 10 pc |
| (Input data) | 2x 0.5 mm² ... 1.5 mm² () |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | Damping diode |
| Minimum order quantity | 10 pc |
| Screw thread (Input data) | M3 |
| Depth (Key Commercial Data) | 104 mm |
| Width (Key Commercial Data) | 14 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Input data) | Input side |
| Height (Key Commercial Data) | 80 mm |
| Stripping length (Input data) | 8 mm |
| (Connection data, input side) | 2x 0.5 mm² ... 1.5 mm² () |
| Connection method (Input data) | Screw connection |
| Status display (Ambient conditions) | LED |
| Color (Connection data, output side) | green |
| Weight per Piece (excluding packing) | 67.000 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Protective circuit (Ambient conditions) | Damping diode, polarity protection diode |
| Conductor cross section AWG (Input data) | 26 ... 14 |
| Conductor cross section solid (Input data) | 0.14 mm² ... 2.5 mm² |
| Screw thread (Connection data, input side) | M3 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 60 °C |
| Conductor cross section flexible (Input data) | 0.14 mm² ... 2.5 mm² |
| Connection name (Connection data, input side) | Output side |
| Nominal input voltage UN (Ambient conditions) | 48 V DC |
| Operating mode (Connection data, output side) | 100% operating factor |
| Stripping length (Connection data, input side) | 8 mm |
| Connection method (Connection data, input side) | Screw connection |
| Flammability rating according to UL 94 (General) | V0 |
| Mounting position (Connection data, output side) | any |
| Protective circuit (Connection data, output side) | Damping diode, polarity protection diode |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Assembly instructions (Connection data, output side) | In rows with zero spacing |
| Conductor cross section AWG (Connection data, input side) | 26 ... 14 |
| Conductor cross section solid (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
Product Description
14 mm PLC base terminal without relay equipment, for NS 35/7.5 rail mounting, Screw connection, 1 switch, Input voltage 48 V DC
