In Stock Hot Product
PLC-BPT-24UC/21-21

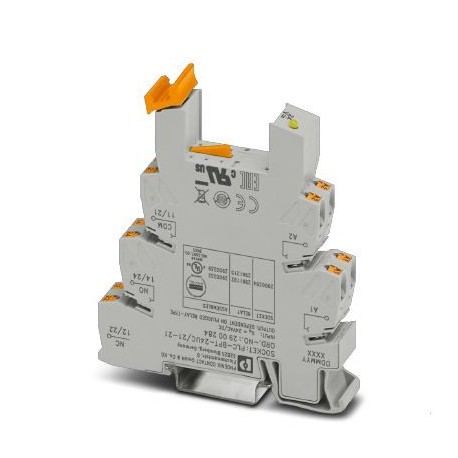

PLC-BPT- 24UC/21-21 2900284 PHOENIX CONTACT Relay base
$0.00USD
3126 in stock
Key Specifications
GTIN:4046356510578
Note:Made to Order (non-returnable)
Orderkey:2900284
Depth (Note):94 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356510578 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2900284 |
| Depth (Note) | 94 mm |
| Packing unit | 10 pc |
| Width (Note) | 14 mm |
| (Input data) | 2x 0.5 mm² ... 1 mm² () |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| (Connection data 1) | 2x 0.5 mm² ... 1 mm² () |
| Custom tariff number | 85369010 |
| Color (Connection data 2) | gray |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Input data) | Input side |
| Stripping length (Input data) | 10 mm |
| Connection method (Input data) | Push-in connection |
| Operating mode (Connection data 2) | 100% operating factor |
| Connection name (Connection data 1) | Output side |
| Status display (Ambient conditions) | LED |
| Stripping length (Connection data 1) | 10 mm |
| Weight per Piece (excluding packing) | 45.800 g |
| Connection method (Connection data 1) | Push-in connection |
| Mounting position (Connection data 2) | any |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Protective circuit (Ambient conditions) | Bridge rectifier |
| Conductor cross section AWG (Input data) | 26 ... 14 |
| Assembly instructions (Connection data 2) | In rows with zero spacing |
| Conductor cross section solid (Input data) | 0.14 mm² ... 2.5 mm² |
| Connection in acc. with standard (General) | CUL |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 60 °C |
| Conductor cross section flexible (Input data) | 0.14 mm² ... 2.5 mm² |
| Nominal input voltage UN (Ambient conditions) | 24 V AC/DC |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section AWG (Connection data 1) | 26 ... 14 |
| Flammability rating according to UL 94 (General) | V0 |
| Conductor cross section solid (Connection data 1) | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible (Connection data 1) | 0.14 mm² ... 2.5 mm² |
Product Description
14 mm PLC base terminal block with push-in connection, without relay or solid-state relay equipment, for mounting on NS 35/7.5 rail, 2 switched contacts, input voltage 24 V AC/DC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
