PLC-BPT- 12DC/21-21

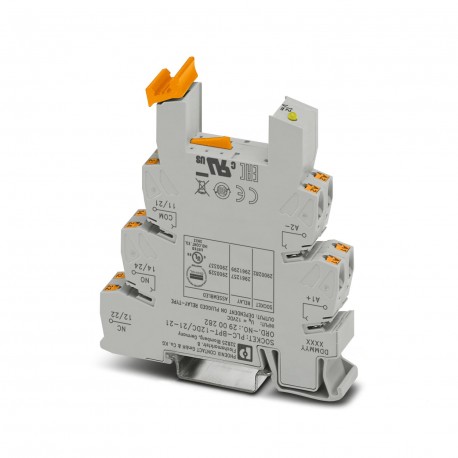

PLC-BPT- 12DC/21-21 2900282 PHOENIX CONTACT Relay base
$0.00USD
4136 in stock
Key Specifications
:2900337 PLC-RPT- 12DC/21-21AU
EMC:B
Depth:94 mm
Width:14 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 2900337 PLC-RPT- 12DC/21-21AU | |
| EMC | B |
| Depth | 94 mm |
| Width | 14 mm |
| Height | 80 mm |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Humidity | A |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Vibration | B/C |
| Application | Universal |
| Certificate | CE-compliant |
| Temperature | D |
| Product type | Relay socket |
| Mounting type | DIN rail mounting |
| Set comprises | 2900329 PLC-RPT- 12DC/21-21 |
| Identification | ISA-S71.04. G3 Harsh Group |
| Product family | PLC-INTERFACE |
| Article revision | 07 |
| Stripping length | 10 mm |
| Connection method | Push-in connection |
| Mounting position | any |
| Protective circuit | Freewheeling diode |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Nominal input voltage UN | 12 V DC |
| Conductor cross section AWG | 26 ... 14 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Electromagnetic compatibility | Conformance with EMC directive |
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Product Description
14 mm PLC base terminal block with push-in connection, without relay or solid-state relay equipment, for mounting on NS 35/7.5 rail, 2 switched contacts, input voltage 12 V DC
