PLC-BPT-125DC/21

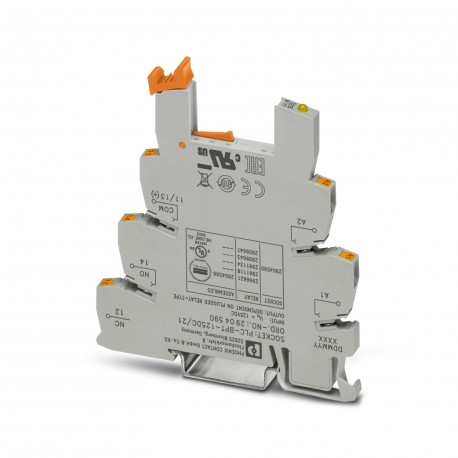

PLC-BPT-125DC/21 2904590 PHOENIX CONTACT Relay base
$0.00USD
3757 in stock
Key Specifications
:The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
EMC:B
Color:gray (RAL 7042)
Depth:94 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit | |
| EMC | B |
| Color | gray (RAL 7042) |
| Depth | 94 mm |
| Width | 6.2 mm |
| Height | 80 mm |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Humidity | A |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Vibration | B/C |
| Application | Universal |
| Certificate | CE-compliant |
| Temperature | D |
| Product type | Relay socket |
| Mounting type | DIN rail mounting |
| Identification | ISA-S71.04. G3 Harsh Group |
| Operating mode | 100% operating factor |
| Product family | PLC-INTERFACE |
| Status display | LED |
| Article revision | 02 |
| Stripping length | 10 mm |
| Connection method | Push-in connection |
| Mounting position | any |
| Protective circuit | Damping diode, polarity protection diode |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Nominal input voltage UN | 125 V DC |
| Conductor cross section AWG | 26 ... 14 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Electromagnetic compatibility | Conformance with EMC directive |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 | V0 (Housing) |
Product Description
6.2 mm PLC base terminal block with push-in connection, without relay or solid-state relay equipment, for mounting on NS 35/7.5 rail, 1 switched contact, input voltage 125 V DC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
