PLC-2RPT-24DC/1

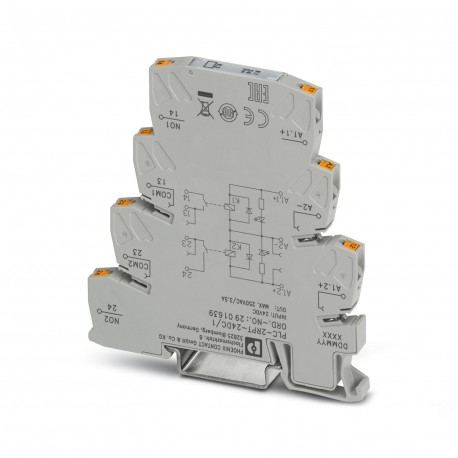

PLC-2RPT-24DC/1 2901639 PHOENIX CONTACT Relay Module
$0.00USD
3487 in stock
Key Specifications
:Surge protection; Freewheeling diode
Color:gray (RAL 7042)
Depth:94 mm
Width:6.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Surge protection; Freewheeling diode | |
| Color | gray (RAL 7042) |
| Depth | 94 mm |
| Width | 6.2 mm |
| Height | 80 mm |
| Insulation | Basic insulation |
| Application | two integrated relays |
| Certificate | CE-compliant |
| Product type | Relay Module |
| Assembly note | in rows with zero spacing |
| Mounting type | DIN rail mounting |
| Identification | ISA-S71.04. G3 Harsh Group |
| Operating mode | 100% operating factor |
| Product family | PLC-INTERFACE |
| Article revision | 08 |
| Contact material | AgNi |
| Drive (polarity) | polarized |
| Pollution degree | 2 |
| Stripping length | 10 mm |
| Connection method | Push-in connection |
| Mounting position | any |
| Drive and function | monostable |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Input voltage range | 18 V DC ... 33.6 V DC (20 °C) |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Typical release time | 6 ms |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Standards/regulations | IEC 60664 |
| Typical response time | 4 ms |
| Contact switching type | 2 N/O contacts |
| Maximum inrush current | 5 A |
| Min. switching current | 5 mA |
| Type of switch contact | Single contact |
| Mechanical service life | 2x 107cycles |
| Nominal input voltage UN | 24 V DC |
| Rated insulation voltage | 250 V AC |
| Maximum switching voltage | 250 V AC |
| Minimum switching voltage | 24 V AC/DC |
| Operating voltage display | Yellow LED |
| Conductor cross section AWG | 26 ... 14 |
| Limiting continuous current | 3.5 A |
| Typical input current at UN | 7 mA |
| Date of last data management | 16.09.2024 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Electromagnetic compatibility | Conformance with EMC directive |
| Test voltage (Contact/contact) | 3 kV AC (50 Hz, 1 min., contact/contact) |
| Test voltage (Winding/contact) | 3 kV AC (50 Hz, 1 min., winding/contact) |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Note regarding the switch contact | two integrated relays |
| Interrupting rating (ohmic load) max. | 84 W (at 24 V DC) |
| Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
| Maximum power dissipation for nominal condition | 0.17 W |
Product Description
PLC-INTERFACE with two independent relays, consisting of PLC-BPT.../21 base terminal block with push-in connection and two integrated relays, power contact, for installation on NS 35/7.5 rail, 2 x 1 c
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
