PI-EX-NAM/TO

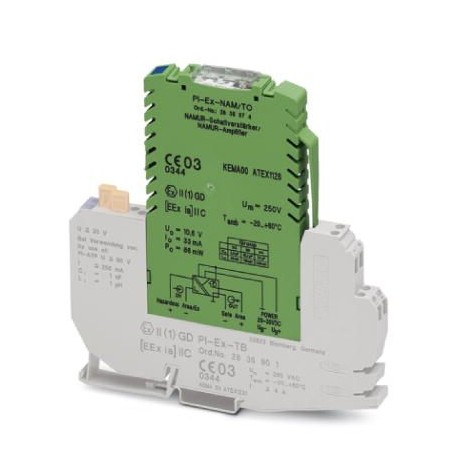

PI-EX-NAM/TO 2835574 PHOENIX CONTACT Signal isolator
$0.00USD
3032 in stock
Key Specifications
GTIN:4017918894863
Note:Made to Order (non-returnable)
Orderkey:2835574
Catalog page:Page 461 (IF-2009)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918894863 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2835574 |
| Catalog page | Page 461 (IF-2009) |
| Depth (Note) | 147 mm |
| Packing unit | 1 pc |
| Width (Note) | 12.4 mm |
| Height (Note) | 145 mm |
| (Safety data) | IIC |
| Group (General) | IIC |
| Country of origin | DE (Germany) |
| (Connection data) | II 3 G Ex nA II T4 X |
| ATEX (Safety data) | II (1) GD [EEx ia] IIC |
| Group (Safety data) | IIA |
| Custom tariff number | 85437090 |
| ATEX (Connection data) | II (1) GD [EEx ia] IIC |
| Color (Connection data) | green |
| Conformance (Safety data) | CE-compliant |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| UL, USA/Canada (Safety data) | UL applied for |
| Conformance (Connection data) | CE-compliant |
| Designation (Connection data) | Input/power supply |
| Switching output (Input data) | Transistor output, active, pnp |
| Max. output power Po (General) | 86 mW |
| Switching current (Input data) | 100 mA (short-circuit-proof) |
| Power consumption (Output data) | max. 0.6 W (24 V) |
| Connection method (Power supply) | Screw connection |
| Max. output current Io (General) | 33 mA |
| Max. output voltage Uo (General) | 10.6 V |
| Status display (Connection data) | Green LED (supply voltage) |
| Switching frequency (Input data) | max. 1.2 kHz (DC) |
| UL, USA/Canada (Connection data) | UL applied for |
| No. of channels (Connection data) | 1 |
| Signal input (Ambient conditions) | Intrinsically safe |
| Housing material (Connection data) | PBT and polyamide PA non-reinforced |
| Supply voltage range (Output data) | 20 V DC ... 30 V DC |
| Max. external capacity Co (General) | 2.3 µF |
| Standards/regulations (Safety data) | NAMUR recommendation NE 21 |
| Weight per Piece (excluding packing) | 90.800 g |
| Non-load voltage (Ambient conditions) | 8.2 V DC ±10 % |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Configurable/programmable (Input data) | Can be inverted via slide switch |
| Electrical isolation (Connection data) | 375 V (Peak value as per EN 50020 / EN 60079-11) |
| Max. current consumption (Output data) | 25 mA |
| Max. external inductivity Lo (General) | 30 mH |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Standards/regulations (Connection data) | NAMUR recommendation NE 21 |
| Safety-related maximum voltage Um (General) | 250 V AC |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C (see data sheet) |
| Available input sources (Ambient conditions) | NAMUR proximity sensors (EN 60947-5-6) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Switching points (attenuated) (Ambient conditions) | < 1.2 mA (blocking) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Flammability rating according to UL 94 (Safety data) | V0 |
| Switching points (unattenuated) (Ambient conditions) | > 2.1 mA (conductive) |
| Flammability rating according to UL 94 (Connection data) | V0 |
Product Description
Ex i binary input: NAMUR separation amplifier. For the service of proximity detectors and switches in the Ex zone. Binary signals are transmitted to the safe zone. Transistor output (active), cable fa
