PH 2,5/ 3

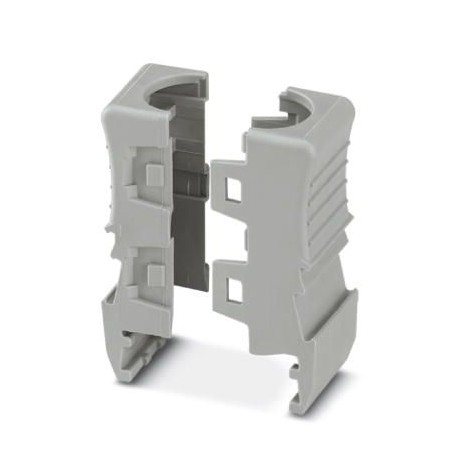

PH 2,5/ 3 3209701 PHOENIX CONTACT Cable housing
$1.71USD
5882 in stock
Key Specifications
GTIN:4046356366908
Orderkey:3209701
Catalog page:Page 367 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356366908 |
| Orderkey | 3209701 |
| Catalog page | Page 367 (C-1-2017) |
| Packing unit | 50 pc |
| Pitch (General) | 15.6 mm |
| Width (General) | 15.6 mm |
| Height (General) | 36.8 mm |
| Length (General) | 19.9 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 50 pc |
| Note (Key Commercial Data) | Assembly instruction: a cable tie is required for strain relief |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Key Commercial Data) | PA |
| Weight per Piece (excluding packing) | 3.820 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of positions (Key Commercial Data) | 3 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Dimensions) | HL 1 - HL 3 |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 130 °C |
Product Description
Cable housing, pitch: 15.6 mm, length: 19.9 mm, width: 15.6 mm, height: 36.8 mm, number of poles: 3, color: gray
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
