PFM1/BP-1H26

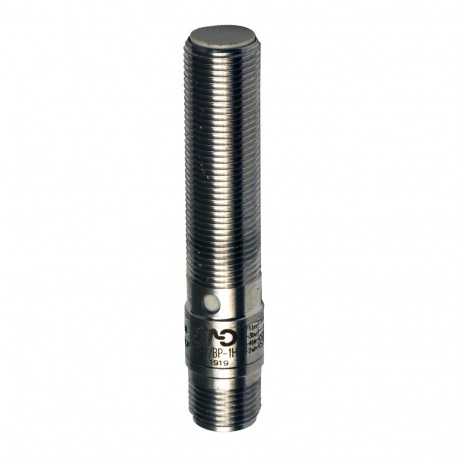

PFM1/BP-1H26 MICRO DETECTORS Inductive sensor M12 shielded standard NO+NC/PNP temperature range -25°C …+ 110..
$0.00USD
3980 in stock
Key Specifications
Weight:30g
Mounting:Shielded
Approvals:CEcULus
Dimensions:M12 x 1 / L = 64,6mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Mounting | Shielded |
| Approvals | CEcULus |
| Dimensions | M12 x 1 / L = 64,6mm |
| Hysteresis | 1 … 20% |
| Connections | M12 Plug |
| Output type | PNP |
| Load current | ≤ 200mA |
| LED indicators | No |
| Leakage current | ≤ 15μA |
| Output Function | NO+NC |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 12x12mm FE360 |
| Housing Material | stainless steel AISI316L |
| Correction Factor | copper: 0,25 / aluminium: 0,30 / brass: 0,40 / stainless steel: 0,75 |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 25Nm |
| Max ripple content | ≤10% |
| Operanting distance | 0…1,6mm |
| Output voltage drop | ≤ 2V @200mA |
| Switching frequency | 2kHz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PPS |
| Degree of protection | IP 67 (EN60529) - IP68 (1m, 7 days) - IP69K |
| Supplied Accessories | 2 nuts M12x1 |
| Operating temperature | -25°C…+110°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤ 15mA |
| Nominal sensing distance | 2mm |
| Short-circuit protection | Yes (auto-reset) |
| Reverse Polarity Protection | Yes |
| Time delay before availability | 50ms |
| Protection against inductive loads | Yes |
Product Description
PFM1/BP-1H26 Inductive sensor M12 shielded Std. NO+NC/PNP temperature range -25°C …+ 110°C
