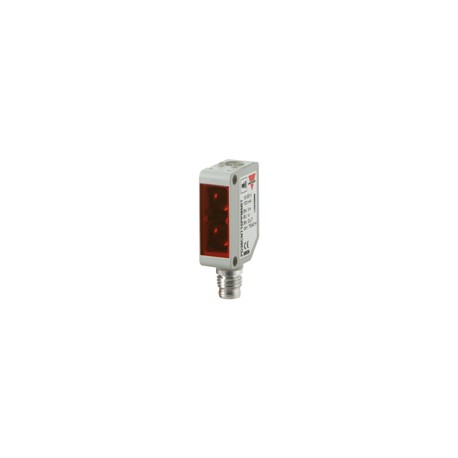

PD30CNP06PPM5RT

PhotoelectricsRetro-reflective, PolarizedType PD30CNP06....RT• Miniature sensor range• Range: 6 m, with reflector• Sensitivity adjustment by Teach-In programming• Modulated, red light 660 nm, polarized• Supply voltage: 10 to 30 VDC• Output: 100 mA, NPN or PNP preset• Make and break switching function programmable• LED indication for output, stability and power ON• Protection: reverse polarity, short circuit and transients• Cable and plug versions• Excellent EMC performance• Remote teach featuresProduct DescriptionOrdering KeyPD30CNP06PPM5RTThe PD30CNP06 sensor fam- ily comes in a compact 10 x30 x 20 mm reinforcedPMMA/ABS housing.Thesensorsareusefulin applications wherehigh- accuracy detection as well as small size is required. Compacthousingandhigh power LED for excellent per- formance-size ratio.The Teach-In function for adjustmentof the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is programmable (NO or NC).A remote teach feature allow the sensor to be set up from e.g. a PLC.TypeHousing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configuration Connection type Remote teachType SelectionHousingRangeConnection Ordering no. Ordering no. W x H x DSn NPN PNPMake or break switchingMake or break switching10 x 30 x 20 mm 6 m Cable PD 30 CNP 06 NPRTPD 30 CNP 06 PPRT10 x 30 x 20 mm 6 m Plug PD 30 CNP 06 NPM5RT PD 30 CNP 06 PPM5RTNote: Reflectors to be ordered seperatelySpecificationsRated operating distance (Sn)Up to 6 m, with reflectorØ 80 mm (ER4)4 m on ER4060 reflectorBlind zone 100 mmSensitivity Adjustable by Teach-InTemperature drift ≤ 0.1%/ºCHysteresis (H)(differential travel) ≤ 10%Rated operational volt. (UB )10 to 30 VDC (ripple included)Ripple (Urpp ) ≤ 10%Output currentContinuous (Ie) ≤ 100 mA Short-time (I) ≤ 100 mA(max. load capacity 100 nF)No load supply current (Io)≤ 30 mA @ 24 VDCMinimum operational current (Im) 0.5 mAOFF-state current (Ir ) ≤ 100 µAVoltage drop (Ud ) ≤ 2.4 VDC @ 100 mAProtection Short-circuit, reverse polarity and transientsLight source GaAlAs, LED, 660 nmLight typeRed, modulatedSensing angle ± 2ºAmbient light10,000 luxLight spot110 mm @ 1.5 mOperating frequency1000 HzResponse timeOFF-ON (tON)≤ 0.5 msON-OFF (tOFF ) ≤ 0.5 msPower ON delay (tv) ≤ 300 msOutput functionNPN and PNPPresetNO/NC switching function Set up by buttonRemote teach functionTeach on (push button active) 0 to 2.5 VDC (NPN)5 to 30 VDC (PNP)Tamper proof When activated more than20 sec. the sensor goes into a Tamper proof mode.IndicationOutput ON LED, yellowSignal stability ON and power ON LED, greenEnvironmentInstallation categoryIII (IEC 60664/60664A60947-1)Specifications are subject to change without notice (09.12.2008) 1
