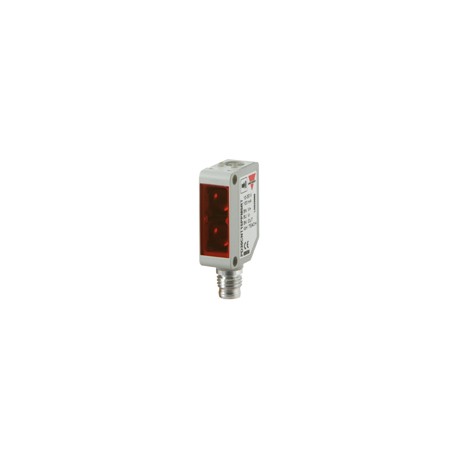

PD30CND10NPM5RT

PhotoelectricsDiffuse-reflectiveType PD30CND10....RT• Miniature sensor range• Range: 1 m• Sensitivity adjustment by Teach-In programming• Modulated, red light 660 nm• Supply voltage: 10 to 30 VDC• Output: 100 mA, NPN or PNP preset• Make or break switching function programmable• LED indication for output, stability and power ON• Protection: reverse polarity, short circuit and transients• Cable and plug versions• Excellent EMC performance• Remote teach featuresProduct DescriptionOrdering KeyPD30CND10PPM5RTThePD30CND10sensor familycomesin a compact10 x 30 x 20 mm reinforcedPMMA/ABS housing.Thesensorsareusefulin applications wherehigh- accuracy detection as well as small size is required. Compacthousingandhigh powerLED forexcellent performance-size ratio.The Teach-In function for adjustmentof the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is NO or NC output.A remote teach feature allow the sensor to be set up from e.g. a PLC.TypeHousing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configuration Connection type Remote teachType SelectionHousing Range ConnectionOrdering no. Ordering no. W x H x D Sn NPNPNPMake or break switching Make or break switching10 x 30 x 20 mm 1 mCablePD 30 CND 10 NPRT PD 30 CND 10 PPRT10 x 30 x 20 mm 1 mPlug PD 30 CND 10 NPM5RTPD 30 CND 10 PPM5RTSpecificationsRated operating distance (Sn)Up to 1 m,referece target Kodak test card R27, white, 90% reflective, 200 x 200 mmBlind zone 20 mmSensitivity Adjustable by Teach-InTemperature drift ≤ 0.1%/ºCHysteresis (H)(differential travel)≤ 10%Rated operational volt. (UB) 10 to 30 VDC (ripple included)Ripple (Urpp ) ≤ 10%Output currentContinuous (Ie) ≤ 100 mA Short-time (I)≤ 100 mA(max. load capacity 100 nF)No load supply current (Io)≤ 30 mA @ 24 VDCMinimum operational current (Im) 0.5 mAOFF-state current (Ir ) ≤ 100 µAVoltage drop (Ud)≤ 2.4 VDC @ 100 mAProtection Short-circuit, reverse polarity and transientsLight source GaAlAs, LED, 660 nmLight typeRed, modulatedSensing angle ± 2ºAmbient light10,000 luxLight spot110 mm @ 1.5 mOperating frequency1000 HzResponse timeOFF-ON (tON)≤ 0.5 msON-OFF (tOFF) ≤ 0.5 msPower ON delay (tv)≤ 300 msOutput functionNPN and PNPPresetNO/NC switching function Set up by buttonRemote teach functionTeach on 0 to 2.5 VDC (NPN)5 to 30 VDC (PNP)Tamper proof When activated more than20 sec. the sensor goes into a Tamper proof mode.IndicationOutput ON LED, yellowSignal stability ON and power ON LED, greenEnvironmentInstallation categoryIII (IEC 60664/60664A60947-1)Specifications are subject to change without notice (09.12.2008)1
