PCV 4/ 2-G-7,62

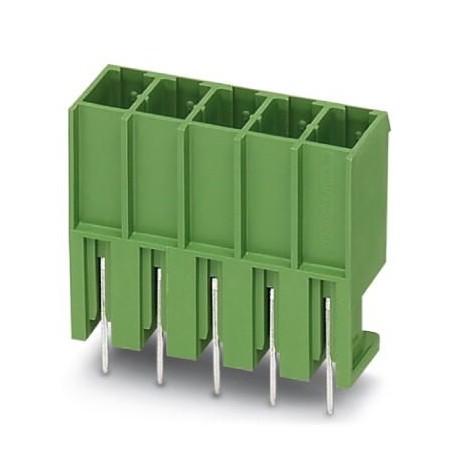

PCV 4/ 2-G-7,62 1804687 PHOENIX CONTACT Feed-through header
$0.00USD
3280 in stock
Key Specifications
GTIN:4017918046125
Orderkey:1804687
Catalog page:Page 517 (C-1-2013)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918046125 |
| Orderkey | 1804687 |
| Catalog page | Page 517 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366930 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 7.62 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Note (Electrical parameters) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Locking (Key Commercial Data) | without |
| Pitch (Material data - housing) | 7.62 mm |
| Rated current (Item properties) | 20 A |
| Pin layout (Key Commercial Data) | Linear pinning |
| Cold stress (Durability tests (B)) | -40 °C/2 h |
| Specification (Climatic tests (D)) | IEC 61984:2008-10 |
| Mounting type (Key Commercial Data) | Wave soldering |
| Plug-in system (Key Commercial Data) | POWER COMBICON 4 |
| Specification (Durability tests (B)) | ISO 6988:1985-02 |
| Specification (Mechanical tests (A)) | IEC 60512-5:1992-08 |
| Weight per Piece (excluding packing) | 3.810 g |
| Dimension a (Material data - housing) | 7.62 mm |
| Pin spacing (Material data - housing) | 7.62 mm |
| Thermal stress (Durability tests (B)) | 100 °C/168 h |
| Type of contact (Key Commercial Data) | Male connector |
| Width [ w ] (Material data - housing) | 15.2 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Height [ h ] (Material data - housing) | 34 mm |
| Length [ l ] (Material data - housing) | 11 mm |
| Number of levels (Key Commercial Data) | 1 |
| Corrosive stress (Durability tests (B)) | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Range of articles (Key Commercial Data) | PCV 4/..-G |
| Contact material (Electrical parameters) | Cu alloy |
| Pin dimensions (Material data - housing) | 1 x 0.8 mm |
| Pin spacing (Dimensions for the product) | 7.62 mm |
| Solder pin [P] (Material data - housing) | 5 mm |
| (Environmental and durability tests (E)) | CSA |
| Number of positions (Key Commercial Data) | 2 |
| Hole diameter (Dimensions for the product) | 1.3 mm |
| Number of potentials (Key Commercial Data) | 2 |
| Number of connections (Key Commercial Data) | 2 |
| Contact resistance R1 (Mechanical tests (A)) | 0.45 mΩ |
| Contact resistance R2 (Mechanical tests (A)) | 0.6 mΩ |
| Dimensional drawing (Material data - housing) | |
| Insulating material (Material data - contact) | PA |
| Rated surge voltage (III/2) (Item properties) | 6 kV |
| Type of packaging (Dimensions for PCB design) | packed in cardboard |
| Insulating material group (Ambient conditions) | I |
| Pieces per package (Dimensions for PCB design) | 50 |
| Brief article description (Key Commercial Data) | Feed-through header |
| Diagram (Air clearances and creepage distances) | |
| Rated surge voltage (II/2) (Ambient conditions) | 6 kV |
| Surface characteristics (Electrical parameters) | Tin-plated |
| Rated surge voltage (III/2) (Ambient conditions) | 6 kV |
| Rated surge voltage (III/3) (Ambient conditions) | 6 kV |
| Insertion/withdrawal cycles (Mechanical tests (A)) | 50 |
| Rated insulation voltage (III/2) (Item properties) | 630 V |
| Insulating material group (Material data - contact) | I |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| Rated insulation voltage (II/2) (Ambient conditions) | 630 V |
| Height (without solder pin) (Material data - housing) | 29 mm |
| Rated insulation voltage (III/2) (Ambient conditions) | 630 V |
| Rated insulation voltage (III/3) (Ambient conditions) | 400 V |
| Ambient temperature (assembly) (Packaging information) | -5 °C ... 100 °C |
| Denomination packing units (Dimensions for PCB design) | Pcs. |
| Ambient temperature (operation) (Packaging information) | -40 °C (dependent on the derating curve) |
| Power-frequency withstand voltage (Durability tests (B)) | 3.31 kV |
| Power-frequency withstand voltage (Mechanical tests (A)) | 3.31 kV |
| Result, degree of protection, IP code (Climatic tests (D)) | Finger safety with IP20 test finger |
| Impulse withstand voltage at sea level (Durability tests (B)) | 7.3 kV |
| Impulse withstand voltage at sea level (Mechanical tests (A)) | 7.3 kV |
| Metal surface contact area (top layer) (Electrical parameters) | Tin (5 - 10 µm Sn) |
| Ambient temperature (storage/transport) (Packaging information) | -40 °C ... 70 °C |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Metal surface soldering area (top layer) (Electrical parameters) | Tin (5 - 10 µm Sn) |
| Metal surface contact area (middle layer) (Electrical parameters) | Nickel (2 - 5 µm Ni), |
| Insulation resistance, neighboring positions (Mechanical tests (A)) | >1012Ω |
| Metal surface soldering area (middle layer) (Electrical parameters) | Nickel (2 - 5 µm Ni) |
| Connection in acc. with standard (Environmental and durability tests (E)) | EN-VDE |
| Flammability rating according to UL 94 (Environmental and durability tests (E)) | V0 |
| Withdraw strength per pos. approx. (Current carrying capacity / derating curves) | 6 N |
| Insertion strength per pos. approx. (Current carrying capacity / derating curves) | 8 N |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Contact holder in insert requirements >20 N (Current carrying capacity / derating curves) | Test passed |
| Polarization when inserted requirement >20 N (Current carrying capacity / derating curves) | Test passed |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
Product Description
Printed circuit board base housing, nominal section: 4 mm², color: green, nominal current: 20 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 2, numb
