PCU 6/ 7-STD-10,16

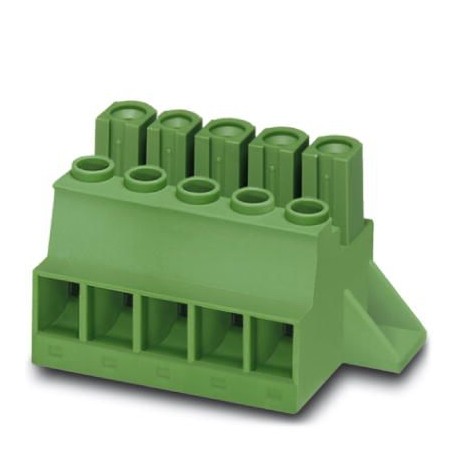

PCU 6/ 7-STD-10,16 1922682 PHOENIX CONTACT Direct plug-in block
$0.00USD
3987 in stock
Key Specifications
GTIN:4017918817664
Note:Made to Order (non-returnable)
Orderkey:1922682
Catalog page:Page 552 (C-1-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918817664 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1922682 |
| Catalog page | Page 552 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | PL (Poland) |
| (Connection data) | CUL |
| Custom tariff number | 85366990 |
| Screw thread (Dimensions) | M4 |
| Pitch (Key Commercial Data) | 10.16 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 12 mm |
| Connection method (Dimensions) | Screw connection with tension sleeve |
| Range of articles (Dimensions) | PCU 6/..-STD |
| Nominal current IN (Dimensions) | 41 A |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 7 |
| Dimension a (Key Commercial Data) | 60.96 mm |
| Maximum load current (Dimensions) | 41 A |
| Rated voltage (II/2) (Dimensions) | 1000 V |
| Width [ w ] (Key Commercial Data) | 91.28 mm |
| Height [ h ] (Key Commercial Data) | 33.9 mm |
| Length [ l ] (Key Commercial Data) | 32.8 mm |
| Nominal cross section (Dimensions) | 6 mm² |
| Rated voltage (III/2) (Dimensions) | 1000 V |
| Rated voltage (III/3) (Dimensions) | 1000 V |
| Tightening torque max (Dimensions) | 1.5 Nm |
| Tightening torque, min (Dimensions) | 1.2 Nm |
| Weight per Piece (excluding packing) | 68.360 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Insulating material group (Dimensions) | I |
| Internal cylindrical gage (Dimensions) | A5 |
| Rated surge voltage (II/2) (Dimensions) | 8 kV |
| Rated surge voltage (III/2) (Dimensions) | 8 kV |
| Rated surge voltage (III/3) (Dimensions) | 8 kV |
| Maximum AWG according to UL/CUL (General) | 8 |
| Minimum AWG according to UL/CUL (General) | 20 |
| Conductor cross section AWG max. (General) | 7 |
| Conductor cross section AWG min. (General) | 20 |
| Conductor cross section solid max. (General) | 10 mm² |
| Conductor cross section solid min. (General) | 0.5 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Conductor cross section flexible max. (General) | 6 mm² |
| Conductor cross section flexible min. (General) | 0.5 mm² |
| Connection in acc. with standard (Connection data) | EN-VDE |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| 2 conductors with same cross section, solid max. (General) | 4 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (General) | 6 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 4 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
Product Description
Direct plug-in block, nominal section: 6 mm², color: green, nominal current: 41 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Female, number of potentials: 7, number of ro
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
