PCD-16-350A

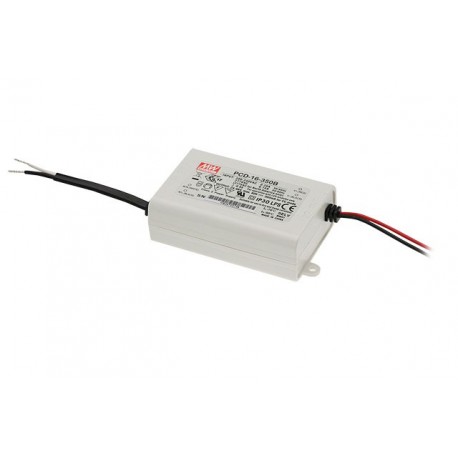

PCD-16-350A MEANWELL AC-DC Single output LED driver Constant Current (CC), Input 90-135VAC, Output 0.35A / 2..
$0.00USD
3410 in stock
Key Specifications
Name:PCD-16-350A
Format:Box
Series:PCD-16
Dimming:Triac
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | PCD-16-350A |
| Format | Box |
| Series | PCD-16 |
| Dimming | Triac |
| Approvals | UL |
| Power (W) | 16,80 |
| Subformato | IP42 |
| Width (mm) | 57.00 |
| Height (mm) | 29.50 |
| AC input Max | 135,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 16.8 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 84.00 |
| Long Description | LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP42.Input range90-135Vca47-63Hz.Output in constant current350mA.Range of output voltage24 to 48vdcaccording to demand load.Power:16,8 WEfficiency typical:82%.AdjustablebyTriac.Input class II without grounding.Factor corrector, power>0,9to 230vac at full load.Operating temperature range of caseTcfrom-35ºCup+60ºC.Dimensions (Length x Width x Height):84 x 57 x 29.5 mm3 years of warranty.Manufacturer: MEAN WELL.The series PCD are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing designed for lighting applications in interior.Can be controlled via TRIACs (regulators that cut the voltage input). See the list of Triacs supported in the technical data sheet.(Not to be confused with dimmers 1-10V. This driver not only can be adjusted by Triac. Check that your dimmer is a Triac, it must have a Line input and a Line Output for connecting to the driver, not an output 1-10V).Protection against excess temperature and short circuit.Tests burn-in (burn-in test) at 100% load. Have a low cost and a high reliability. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| Output current mA | Three hundred fifty |
| Intensity of Minimum Output (mA) | 350,00 |
| Intensity of Output Maximum (mA) | 350,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver dimmable.
