PC 5/ 4-STF1-7,62 BG

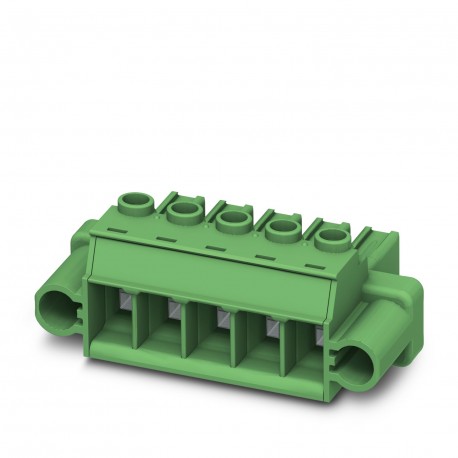

PC 5/ 4-STF1-7,62 BG 1783924 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
4869 in stock
Key Specifications
GTIN:4046356563529
Orderkey:1783924
Packing unit:1
Note (Dimensions):Tightening torque ≤ 4 mm² is 0.5 Nm to 0.6 Nm,> 4 mm² is 0.7 Nm to 0.8 Nm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356563529 |
| Orderkey | 1783924 |
| Packing unit | 1 |
| Note (Dimensions) | Tightening torque ≤ 4 mm² is 0.5 Nm to 0.6 Nm,> 4 mm² is 0.7 Nm to 0.8 Nm |
| Custom tariff number | 85366990 |
| Screw thread (Dimensions) | M3 |
| Pitch (Key Commercial Data) | 7.62 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 10 mm |
| Connection method (Dimensions) | Screw connection with tension sleeve |
| Range of articles (Dimensions) | PC 5/..-STF1 |
| Nominal current IN (Dimensions) | 41 A |
| Number of positions (Dimensions) | 4 |
| Dimension a (Key Commercial Data) | 22.86 mm |
| Rated voltage (II/2) (Dimensions) | 1000 V |
| Width [ w ] (Key Commercial Data) | 45.71 mm |
| Height [ h ] (Key Commercial Data) | 19.7 mm |
| Length [ l ] (Key Commercial Data) | 35.3 mm |
| Nominal cross section (Dimensions) | 6 mm² |
| Rated voltage (III/2) (Dimensions) | 1000 V |
| Rated voltage (III/3) (Dimensions) | 1000 V |
| Tightening torque max (Dimensions) | 0.8 Nm |
| Tightening torque, min (Dimensions) | 0.5 Nm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Internal cylindrical gage (Dimensions) | A4 |
| Rated surge voltage (II/2) (Dimensions) | 6 kV |
| Rated surge voltage (III/2) (Dimensions) | 8 kV |
| Rated surge voltage (III/3) (Dimensions) | 8 kV |
| Maximum AWG according to UL/CUL (General) | 8 |
| Minimum AWG according to UL/CUL (General) | 24 |
| Conductor cross section AWG max. (General) | 10 |
| Conductor cross section AWG min. (General) | 24 |
| Conductor cross section solid max. (General) | 10 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 6 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | CUL |
| 2 conductors with same cross section, solid max. (General) | 2.5 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.2 mm² |
| 2 conductors with same cross section, stranded max. (General) | 4 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.25 mm² |
Product Description
Connector for printed circuit board, nominal section: 6 mm², color: pebble gray, nominal current: 41 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of potential
