PATG 9/15

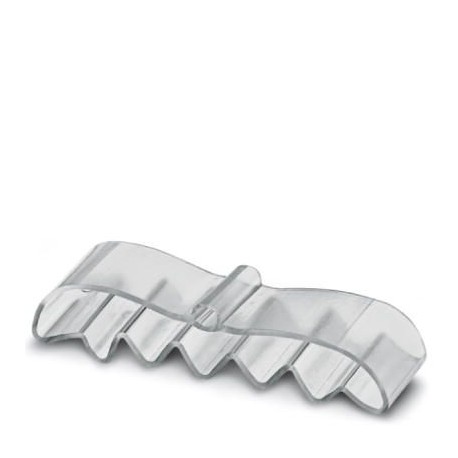

PATG 9/15 1013106 PHOENIX CONTACT Conductor marker carrier
$0.00USD
4550 in stock
Key Specifications
GTIN:4017918013523
Note:Made to Order (non-returnable)
Orderkey:1013106
Catalog page:Page 256 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918013523 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1013106 |
| Catalog page | Page 256 (C-3-2017) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 50 pc |
| Type (Ambient conditions) | Profile |
| Color (Ambient conditions) | transparent |
| Result (Ambient conditions) | Test passed |
| Material (Ambient conditions) | PVC |
| Components (Ambient conditions) | Silicone-free |
| Width (a) (Key Commercial Data) | 54 mm |
| Length (b) (Key Commercial Data) | 15 mm |
| RoHS compliant (Ambient conditions) | Yes |
| Cable diameter (Key Commercial Data) | 35 mm ... 45 mm |
| Weight per Piece (excluding packing) | 2.000 g |
| Marking mounting type (Ambient conditions) | slide on |
| Ambient temperature (operation) (Dimensions) | -50 °C ... 80 °C |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Holder for conductor signalling, transparent, unlabelled, mounting class: slip, cable diameter range: 35 ... 45 mm, usable area: 15 x 4 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
