PATG 2/10

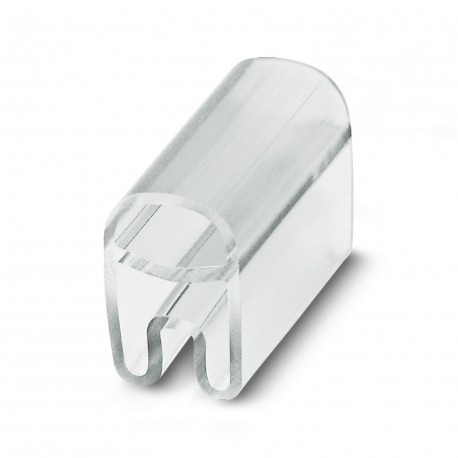

PATG 2/10 1013818 PHOENIX CONTACT Conductor marker carrier
$0.00USD
4527 in stock
Key Specifications
Type:Profile
Color:transparent
Width:5 mm
Length:10 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Profile |
| Color | transparent |
| Width | 5 mm |
| Length | 10 mm |
| Result | Test passed |
| Material | PVC |
| Components | Silicone-free |
| Product type | Marker carrier cable |
| Mounting type | slide-on |
| RoHS compliant | yes |
| Article revision | 06 |
| Outside diameter | 2 mm ... 4 mm |
| Text field width | 10.00 mm |
| Text field height | 4.00 mm |
| External diameter max. | 4 mm |
| External diameter min. | 2 mm |
| External cable diameter | 2 mm ... 4 mm |
| Ambient temperature (operation) | -50 °C ... 80 °C |
| Flammability rating according to UL 94 | V0 |
| Recommended humidity (storage/transport) | 50 % |
| Recommended ambient temperature (storage/transport) | 23 °C |
Product Description
Conductor signalling bracket, transparent, unlabelled, mounting class: slip, cable diameter range: 2 ... 4 mm, usable area: 10x4mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
