PACT RCP-D190
PACT RCP-D190 2904892 PHOENIX CONTACT Coil
$0.00USD
3906 in stock
Key Specifications
GTIN:4046356898195
Note:Made to Order (non-returnable)
Orderkey:2904892
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356898195 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2904892 |
| Packing unit | 1 pc |
| (General data) | IEC 61010-2-032 |
| Country of origin | IT (Italy) |
| Custom tariff number | 90309000 |
| (Ambient conditions) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| UL, USA/Canada (General data) | UL 61010 Recognized |
| (General data, measuring coil) | IEC 61010-2-032 |
| (Measuring coil signal output) | 600 V AC (rms CAT IV) |
| China RoHS (Ambient conditions) | Environmentally Friendly Use Period = 50 |
| Position error (Key Commercial Data) | < 1 % |
| Standards/regulations (General data) | IEC 61010-1 |
| Weight per Piece (excluding packing) | 181.500 g |
| Linearity error (Key Commercial Data) | 0.1 % |
| Insulation (Measuring coil signal output) | double insulation |
| Test voltage (Measuring coil signal output) | 10.45 kV (DC / 1 min.) |
| Coil material (Measuring coil signal output) | Elastollan |
| Maximum altitude (Standards and Regulations) | < 2000 m |
| Basic accuracy (Measuring coil signal output) | |
| UL, USA/Canada (Measuring coil signal output) | UL 61010 Recognized |
| Frequency measuring range (Key Commercial Data) | 40 Hz ... 20000 Hz |
| Housing material (Measuring coil signal output) | PC |
| Output signal (at 50 Hz) (Measuring coil input data) | 100 mV (no load, at 1,000 A) |
| Standards/regulations (General data, measuring coil) | IEC 61010-1 |
| Length of signal cable (Measuring coil signal output) | 3000 mm |
| Length of measuring coil (Measuring coil signal output) | 600 mm |
| Rated insulation voltage (Measuring coil signal output) | 1000 V AC (rms CAT III) |
| Diameter of measuring coil (Measuring coil signal output) | 8.3 mm ±0.2 mm |
| Ambient temperature (operation) (Standards and Regulations) | -30 °C ... 80 °C (Measuring coil) |
| Conductor structure signal line (Measuring coil signal output) | 2x 0.22 mm (Signal (tinned)) |
| Measuring coil degree of protection (Standards and Regulations) | IP67 (not assessed by UL) |
| Output voltage (in no-load operation) (Measuring coil input data) | VOUT= M * dI/dt |
| Ambient temperature (storage/transport) (Standards and Regulations) | -40 °C ... 80 °C (Measuring coil) |
| Output voltage (sinusoidal, in no-load operation) (Measuring coil input data) | 100 mV (VOUT= 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A)) |
Product Description

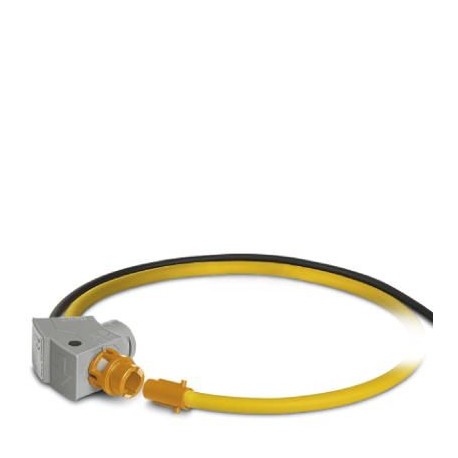

Rogowski coil with a length of 600 mm. The diameter of the measuring coil in installed state is 190 mm. The Rogowski coil is used for the measurement of AC current from busbars and high-voltage lines.
