PACT RCP-4000A-1A

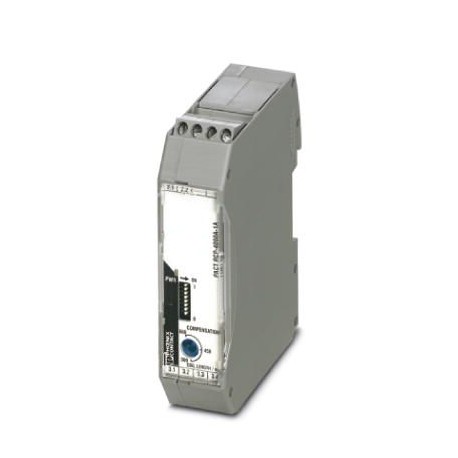

PACT RCP-4000A-1A 2902990 PHOENIX CONTACT Measuring transducer
$0.00USD
4547 in stock
Key Specifications
GTIN:4046356703734
Orderkey:2902990
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356703734 |
| Orderkey | 2902990 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Packing unit | 1 pc |
| (Dimensions) | -20 °C ... 70 °C (Measuring transducer) |
| Depth (General) | 70.40 mm |
| Width (General) | 22.50 mm |
| Height (General) | 85.00 mm |
| Country of origin | DE (Germany) |
| Class (Input data) | 1 |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 85437090 |
| (Ambient conditions) | 0 A ... 4000 A |
| (Key Commercial Data) | -20 °C ... 70 °C (Measuring transducer) |
| Converter type (Input data) | Measuring transducer for Rogowski coil |
| Maximum altitude (Dimensions) | < 2000 m |
| Altitude (Key Commercial Data) | < 2000 m |
| Can be calibrated (Input data) | no |
| Rated power (Ambient conditions) | 1.5 VA |
| Weight per Piece (excluding packing) | 140.000 g |
| Ambient temperature (operation) (Dimensions) | -10 °C ... 65 °C (-14 °F...149 °F) |
| Primary rated current Ipn (Ambient conditions) | 0 A ... 100 A |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C (Measuring transducer) |
| Ambient temperature (operation) (Key Commercial Data) | -10 °C ... 65 °C (-14 °F...149 °F) |
| Measuring transducer degree of protection (Dimensions) | IP20 |
| Permissible humidity (operation) (Key Commercial Data) | 5 % ... 95 % (non-condensing) |
| Ambient temperature (storage/transport) (Key Commercial Data) | -25 °C ... 85 °C (Measuring transducer) |
Product Description
In this case it is an individual item, please select the complete set. The measurement transducer processes the mV signal generated by the pre-connected Rogowski coil. 8 current measurement ranges can
