P5-250/EA/SVB-SW

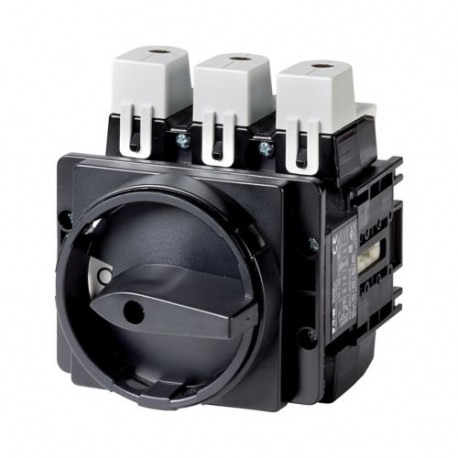

P5-250/EA/SVB-SW 280939 Y7-280939 EATON ELECTRIC Main switch, 3 pole, 250 A, STOP function, Lockable in the ..
$0.00USD
3235 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):150 mm
Width (EF000008):130 mm
Height (EF000040):150 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 150 mm |
| Width (EF000008) | 130 mm |
| Height (EF000040) | 150 mm |
| Interlockable (EF006281) | Yes |
| Number of poles (EF001391) | 3 |
| Number of switches (EF005586) | 1 |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | No |
| Colour control element (EF007167) | Black |
| Motor drive integrated (EF006697) | No |
| Version as main switch (EF006981) | Yes |
| Rated operating voltage (EF001435) | 690 V |
| Type of control element (EF006976) | Door coupling rotary drive |
| Switching power at 400 V (EF009166) | 90 kW |
| Version as safety switch (EF006985) | No |
| Voltage release optional (EF007491) | No |
| Rated permanent current Iu (EF001389) | 250 A |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (NEMA) (EF011959) | 12 |
| Version as reversing switch (EF009408) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Rated operation power at AC-3, 400 V (EF001364) | 55 kW |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Rated operation power at AC-23, 400 V (EF007027) | 90 kW |
| Rated short-time withstand current lcw (EF007050) | 4.6 kA |
| Version as emergency stop installation (EF006959) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Rated permanent current at AC-21, 400 V (EF009165) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Conditioned rated short-circuit current Iq (EF001444) | 30 kA |
| Suitable for distribution board installation (EF007262) | No |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
Product Description
P5-250/EA/SVB-SW
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
