In Stock Hot Product

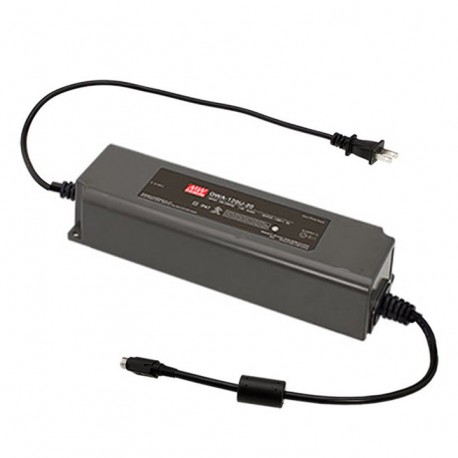

OWA-120U-12
OWA-120U-12 MEANWELL AC-DC Single output moistureproof adaptor with PFC, Input 2 pin USA plug, Output 12VDC ..
$0.00USD
4203 in stock
Key Specifications
Name:OWA-120U-12
State:New
Format:Box
Series:OWA-120
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | OWA-120U-12 |
| State | New |
| Format | Box |
| Series | OWA-120 |
| Approvals | UL |
| Power (W) | 120,00 |
| Subformato | IP67 |
| Width (mm) | 63.00 |
| Height (mm) | 37.50 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Output voltage | 12,00 |
| Peak Power (W) | One hundred twenty |
| Input connector | Pin American |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 191.00 |
| Long Description | LED driver.Specially designed to feed LED strips.Format in box waterproof plasticIP67.Range of universal input90-264Vac47-63Hz.Output voltage12vdc.Output intensity10A. Range of output current 0-10A according to demand load.Power:120W.Efficiency typical:87%.Input class II without grounding.Factor corrector, power>0.97to 115vac at full load.Consumption without load<0,15 W.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):191 x 63 x 37.5 mm5 years warranty.Manufacturer: MEAN WELL.This source is designed to work directametne with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 12V if the load is powered at constant voltage and does not surpass the maximum power of departure by.With plastic housing waterproof IP67 suitable for outdoor use. Intended for electronic products that are used in dusty environments or wet (lawn, home appliances...). Also suitable for interior, office, decor and lighting devices LED.The series OWA-120U has input connector americanNEMA 1-15Pand output connector type power DIN 4P. |
| Output connector | R7B DIN 4p |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
