OV-24DC/480AC/5

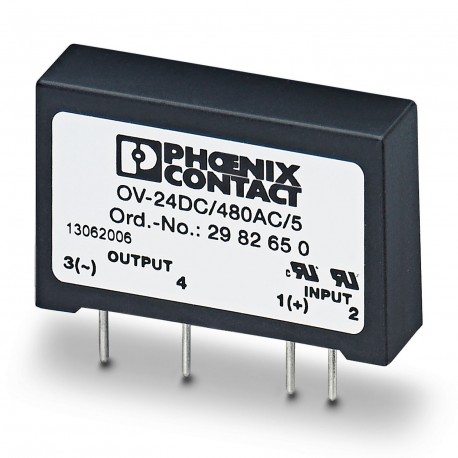

OV-24DC/480AC/5 2982650 PHOENIX CONTACT Semi-conductor relay
$0.00USD
3846 in stock
Key Specifications
:EN 61000-4-3
Color:black (RAL 9005)
Depth:25.4 mm
Width:10.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EN 61000-4-3 | |
| Color | black (RAL 9005) |
| Depth | 25.4 mm |
| Width | 10.5 mm |
| Height | 43 mm |
| Insulation | Basic insulation |
| Certificate | UKCA-compliant |
| Product type | Single solid-state relay |
| Assembly note | Can be aligned with > 20 mm spacing |
| Surge current | 80 A (tp = 20 ms) |
| Operating mode | 100% operating factor |
| Output circuit | 2-conductor |
| Leakage current | < 1 mA |
| Max. load value | 50 A2s |
| Article revision | 00 |
| Min. load current | 20 mA |
| Mounting position | any |
| Dimensional drawing | |
| Input voltage range | 4 V DC ... 32 V DC |
| Output voltage range | 12 V AC ... 530 V AC (45/65 Hz) |
| Peak offstate voltage | 1000 V (Periodic peak reverse voltage) |
| Standards/regulations | EN 61000-4-2 |
| Typical response time | ms (maximum ½ periods) |
| Typical turn-off time | ms (maximum ½ periods) |
| Transmission frequency | 25 Hz |
| Phase angle cos phi min | 0.5 |
| Design of digital output | electronic |
| Nominal input voltage UN | 24 V DC |
| Limiting continuous current | 5 A (see derating curve) |
| Test voltage (Input/output) | 4 kV (50 Hz, 1 min., input/output) |
| Typical input current at UN | 10 mA |
| Date of last data management | 17.05.2024 |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Switching threshold "1" signal voltage | > 3.5 V DC |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Switching threshold "0" signal, voltage | < 1.2 V DC |
| Voltage drop at max. limiting continuous current | 1.2 V |
Product Description
Solid-state relay, for signal amplification and galvanic separation of control and load circuits, pluggable into plug-in sockets for soldering SIM-AMS, or with card connection for direct mounting on t
