OT630E33P

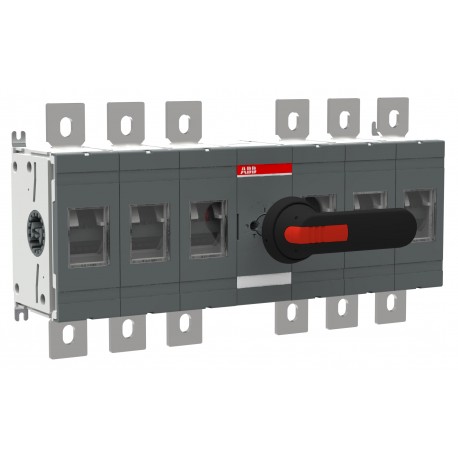

OT630E33P 1SCA107832R1001 ABB OT630E33P switch-disconnector
$0.00USD
3116 in stock
Key Specifications
:1SCC301487F0001
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1SCC301487F0001 | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| Lock Type | Yes |
| Standards | IEC 60947-3 |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Handle Type | Handle and shaft included |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Operating Mode | Front operated |
| Number of Poles | 6 |
| Pollution Degree | 3 |
| RoHS Information | 1SCC011020D0201 |
| Country of Origin | Finland (FI) |
| Product Net Width | 461 mm |
| REACH Declaration | 1SCC011021D0201 |
| Special Functions | No |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| DNV GL Certificate | 1SCC301184D0203 |
| Product Net Height | 250 mm |
| Product Net Weight | 7.7 kg |
| Mechanical Drawings | 1SCC301488F0001 |
| Package Level 1 EAN | 6417019413310 |
| Degree of Protection | Front IP00 |
| Customs Tariff Number | 85365080 |
| Mechanical Durability | 10000 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 400 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 150 mm |
| A2L Certificate – IEC | 1SCC301337D0201 |
| Distance Between Phases | Standard |
| End of Life Instructions | 1SCC301119M0201 |
| Instructions and Manuals | 1SCC301042M0211 |
| Environmental Information | 1SCC301232D0201 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Object Classification Code | Q |
| Position of Line Terminals | Top In - Bottom Out |
| Product Net Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 11.1 kg |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Declaration of Conformity - CE | 1SCC301140D2704 |
| Package Level 1 Depth / Length | 500 mm |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A |
| Rated Operational Current DC-21B (Ie) | (1000 V) 600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Environmental Product Declaration - EPD | 1SCC301284D0201 |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 630 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
Product Description
OT630E33P SWITCH-DISCONNECTOR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
