In Stock Hot Product
OSRA 50-25

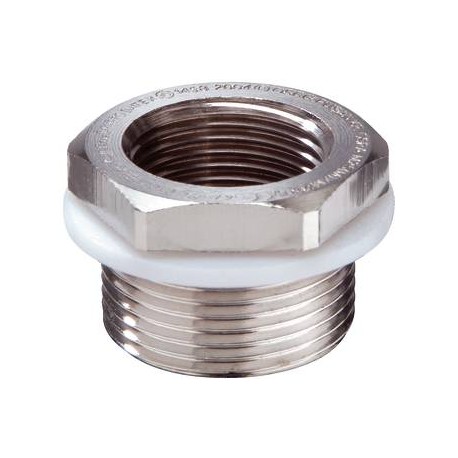

OSRA 50-25 50065659 WISKA Metallic reduction "ATEX" IP67 thread ext. M50 int. M25
$0.00USD
3353 in stock
Key Specifications
Type (Features):OSRA 50 / M50(M)*M25(F)
Material (Features):Brass nickel-plated
Lead inner (Features):1,5
Lead outer (Features):1,5
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | OSRA 50 / M50(M)*M25(F) |
| Material (Features) | Brass nickel-plated |
| Lead inner (Features) | 1,5 |
| Lead outer (Features) | 1,5 |
| Key width SW (Features) | 55 mm |
| Packing unit (Features) | 1 |
| Ex-Certificate (Features) | IECEx, ATEX |
| Temp. range max (Features) | 110 °C |
| Temp. range min (Features) | -60 °C |
| Total length TL (Features) | 22 mm |
| Ø inner thread (Features) | 25 |
| Ø outer thread (Features) | 50 |
| Protection class (Features) | IP66 / IP67 |
| Thread type inner (Features) | M |
| Thread type outer (Features) | M |
| Type of protection (Features) | Ex eb, Ex tb, Ex db |
| Collar diameter (E) (Features) | 59 mm |
| ETIM-Classification (Features) | EC000938 |
| Order no. nickel-plated (Features) | 50065659 |
| Length screw-in thread L (Features) | 15 mm |
Product Description
Ex d reduction adaptor, brass nickel-plated, M50-M25
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
