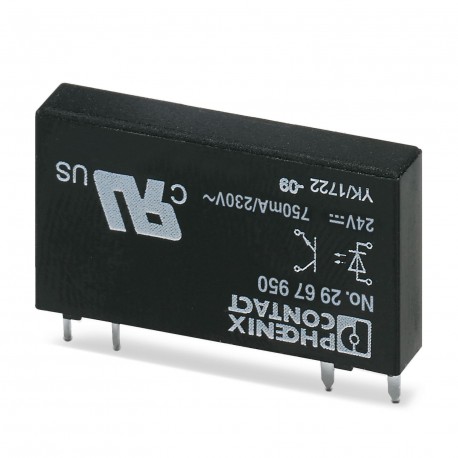

OPT-24DC/230AC/ 1 2967950 PHOENIX CONTACT Miniature solid-state relay
$0.00USD
4892 in stock
Key Specifications
:EN 60068-2-60
Color:black (RAL 9005)
Depth:15 mm
Width:5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EN 60068-2-60 | |
| Color | black (RAL 9005) |
| Depth | 15 mm |
| Width | 5 mm |
| Height | 28 mm |
| Insulation | Basic insulation |
| Product type | Single solid-state relay |
| Assembly note | in rows with zero spacing |
| Identification | ISA-S71.04. G3 Harsh Group |
| Operating mode | 100% operating factor |
| Output circuit | 2-conductor floating, zero voltage switch |
| Leakage current | < 1 mA |
| Max. load value | 4.5 A2s |
| Article revision | 02 |
| Pollution degree | 2 |
| Min. load current | 10 mA |
| Mounting position | any |
| Protective circuit | RCV circuit; RCV circuit |
| Dimensional drawing | |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Degree of protection | RT III |
| Output voltage range | 24 V AC ... 253 V AC |
| Overvoltage category | III |
| Standards/regulations | IEC 60664 |
| Typical response time | 10 ms (at UN) |
| Typical turn-off time | 10 ms (at UN) |
| Contact switching type | 1 N/O contact |
| Maximum inrush current | 30 A (10 ms) |
| Transmission frequency | 10 Hz |
| Phase angle cos phi min | 0.5 |
| Design of digital output | electronic |
| Nominal input voltage UN | 24 V DC |
| Limiting continuous current | 0.75 A (see derating curve) |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
| Typical input current at UN | 6.6 mA |
| Date of last data management | 11.07.2024 |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Maximum power dissipation for nominal condition | 0.07 W |
| Voltage drop at max. limiting continuous current | < 1 V |
| Switching threshold "0" signal in reference to UN | 0.35 |
| Switching threshold "1" signal in reference to UN | 0.8 |
Product Description
Plug-in miniature solid-state relay, power solid-state relay, 1 closing contact, input: 24 V DC, output: 24-253 V AC/ 0.75 A
