OCS HP 121006 TRANS

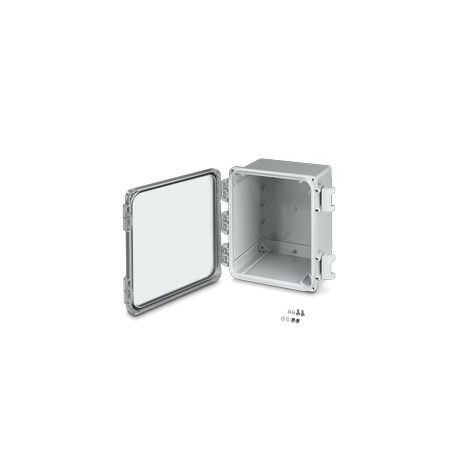

OCS HP 121006 TRANS 1471776 PHOENIX CONTACT Outdoor box, color: light gray, dimensions: 326 x 308 x 185 mm (..
$0.00USD
4167 in stock
Key Specifications
Type:Complete housing with transparent cover incl. mounting material
Depth:185 mm
Width:308 mm
Height:326 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Complete housing with transparent cover incl. mounting material |
| Depth | 185 mm |
| Width | 308 mm |
| Height | 326 mm |
| General | Only use the screws provided to screw the components onto the corner inlays, the mounting pillars, and the housing. |
| Temperature | 850 °C |
| Housing type | Outdoor housing |
| Product type | Complete housing |
| Hole diameter | 10 mm (Can be secured mechanically with the latch) |
| Mounting type | Mast mounting or wall mounting |
| Seal material | PUR |
| Specification | IEC 60695-2-11:2014-02 |
| Housing series | OCS |
| Impact strength | IK10 (at -35°C ... +40°C) |
| Housing material | PC UV-stabilized |
| Time of exposure | 30 s |
| Cross section AWG | (converted acc. to IEC) |
| Mounting position | any |
| Type of packaging | Box packaging |
| Battery compartment | no |
| Dimensional drawing | |
| Insulating material | PC |
| Color (Housing cover) | transparent |
| Max. IP code to attain | IP69 |
| Surface characteristics | untreated |
| Max. NEMA code to attain | 6P |
| Ventilation openings present | no |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Flammability rating according to UL 94 | V2 |
Product Description
Electronics box
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
