In Stock Hot Product
NZMN3-PMX450-SVE
NZMN3-PMX450-SVE 192330 Y7-192330 EATON ELECTRIC NZMN3-PMX450-SVE
$0.00USD
3758 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):335 mm
Width (EF000008):140 mm
Height (EF000040):215.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 335 mm |
| Width (EF000008) | 140 mm |
| Height (EF000040) | 215.2 mm |
| Power loss (EF005387) | None W |
| Number of poles (EF001391) | 3 |
| Device construction (EF008240) | Built-in device plug-in technique |
| Switch off technique (EF007007) | Electronic |
| Phase failure sensitive (EF007400) | true |
| Rated operating voltage (EF001435) | 690 V |
| Type of control element (EF006976) | Rocker lever |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated permanent current Iu (EF001389) | 450 A |
| Overload release current setting (EF002336) | 180 A |
| With integrated auxiliary switch (EF001387) | false |
| With thermal overload protection (EF006233) | true |
| Rated operation power at AC-3, 230 V (EF007025) | 132 kW |
| Rated operation power at AC-3, 400 V (EF001364) | 250 kW |
| With integrated under voltage release (EF001390) | false |
| Type of electrical connection of main circuit (EF006819) | Other |
| Adjustment range undelayed short-circuit release (EF007131) | 2 A |
| Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) | 35 kA |
Product Description

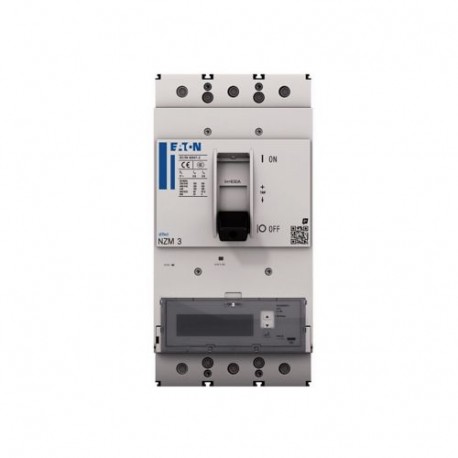

Eaton Moeller series NZM - Molded Case Circuit Breaker. NZM3 PXR25 circuit breaker - integrated energy measurement class 1, 450A, 3p, plug-in technology, N, 3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
