NZMN2-MX140

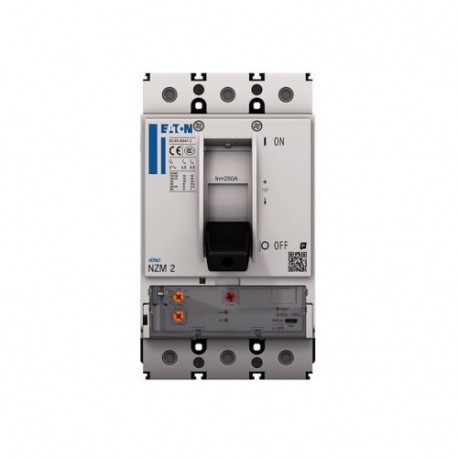

NZMN2-MX140 191632 Y7-191632 EATON ELECTRIC Automatic int. NZM2 PXR20, 140A, 3p, screw terminals
$0.00USD
4309 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):190 mm
Width (EF000008):115 mm
Height (EF000040):160 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 190 mm |
| Width (EF000008) | 115 mm |
| Height (EF000040) | 160 mm |
| Number of poles (EF001391) | 3 |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Switch off technique (EF007007) | Electronic |
| Phase failure sensitive (EF007400) | Yes |
| Rated operating voltage (EF001435) | 690 V |
| Type of control element (EF006976) | Rocker lever |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated permanent current Iu (EF001389) | 140 A |
| Overload release current setting (EF002336) | 56 A |
| With integrated auxiliary switch (EF001387) | No |
| With thermal overload protection (EF006233) | Yes |
| Rated operation power at AC-3, 230 V (EF007025) | 37 kW |
| Rated operation power at AC-3, 400 V (EF001364) | 75 kW |
| With integrated under voltage release (EF001390) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Adjustment range undelayed short-circuit release (EF007131) | 2 A |
| Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) | 35 kA |
Product Description
NZMN2-MX140
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
