In Stock Hot Product
NYP2A-10000-12WC1000

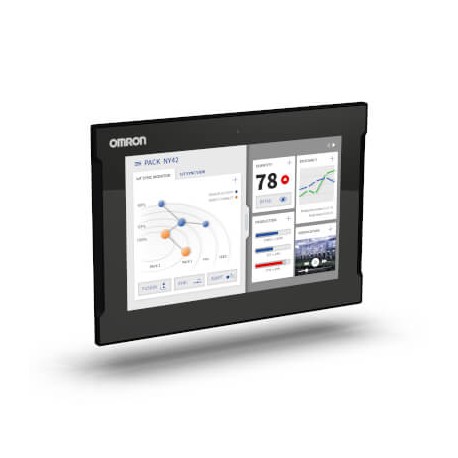

NYP2A-10000-12WC1000 NYP10684A 688974 OMRON Industrial Panel PC with Intel® Atom E3940, 4GB DRAM (without EC..
$0.00USD
4674 in stock
Key Specifications
():S8BW-C02
Memory:2 GB RAM (non ECC)
Weight:4700 g
Storage:No Storage
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | S8BW-C02 |
| Memory | 2 GB RAM (non ECC) |
| Weight | 4700 g |
| Storage | No Storage |
| Modular port | No Port |
| Video output | DVI-D |
| Display ratio | 16:10 |
| Built-in depth | 63 mm |
| Cooling method | Passive cooling (fanless) |
| Expansion slot | No Expansion |
| Mounting method | Build-in |
| Screen diagonal | 12.1 inch |
| Type of display | TFT |
| Material housing | Aluminium, black |
| Operating system | No OS |
| Processor family | Intel® Atom™ |
| Supply voltage DC | 20.4-28.8 V |
| Width of the front | 332 mm |
| Height of the front | 234 mm |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Operating temperature | 0-55 °C |
| Width of panel cutout | 314 mm |
| Height of panel cutout | 216 mm |
| Touchscreen technology | Projected capacitive |
| Processor specification | E3940 (1.6 GHz) |
| Max. number of motion axes | 0 axes |
| Number of pixels, vertical | 800 |
| Number of pixels, horizontal | 1280 |
| Degree of protection (IP), front side | IP65 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
