NY532-1300-012445700

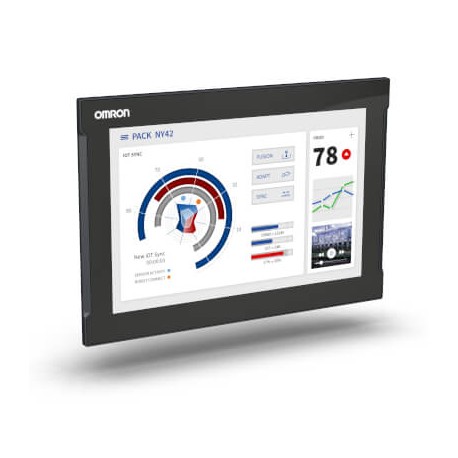

NY532-1300-012445700 NY510324A 701517 OMRON 16-Axis Machine Controller, Industrial Panel PC with Intel© Core..
$0.00USD
3520 in stock
Key Specifications
():S8BW-C02
Memory:32 GB RAM (non ECC)
Weight:6000 g
Storage:256 GB CFast MLC
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | S8BW-C02 |
| Memory | 32 GB RAM (non ECC) |
| Weight | 6000 g |
| Storage | 256 GB CFast MLC |
| IPC type | Panel PC |
| Modular port | No Port |
| Video output | DVI-I |
| Display ratio | 16:10 |
| Cooling method | Active cooling (fan) |
| Expansion slot | No Expansion |
| Controller type | Machine Control |
| Mounting method | Build-in |
| Screen diagonal | 15.4 inch |
| Type of display | TFT |
| Material housing | Aluminium, black |
| Operating system | Windows 10 IoT Enterprise 2019 LTSB - 64 bit |
| Processor family | Intel® Core™ i5 |
| Supply voltage DC | 20.4-28.8 V |
| Width of the front | 401 mm |
| Height of the front | 277 mm |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB |
| Operating temperature | 0-55 °C |
| Width of panel cutout | 383 mm |
| Height of panel cutout | 259 mm |
| Touchscreen technology | Projected capacitive |
| Processor specification | 7440EQ (2.9 GHz) |
| Max. number of motion axes | 16 axes |
| Number of pixels, vertical | 800 |
| Number of pixels, horizontal | 1280 |
| Degree of protection (IP), front side | IP65 |
Product Description
Machine Controller for 16 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 32 GB RAM (Non-ECC), 256 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bit, 15.4" display with capacitive touc
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
