NX-TS3201

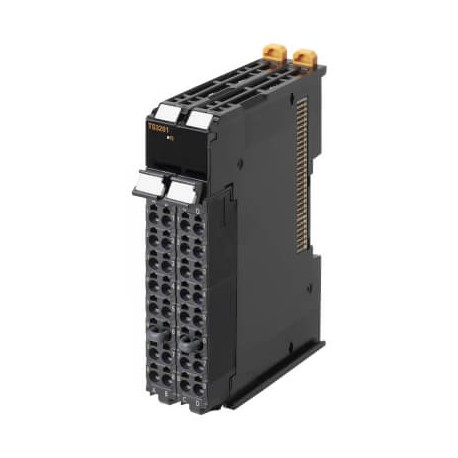

NX-TS3201 NX020059C 375644 OMRON NX Unit 4 RTD Inputs 0.1 ºC 200 ms
$0.00USD
3317 in stock
Key Specifications
():NX-HB3201
Depth:71 mm
Width:24 mm
Height:100 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | NX-HB3201 |
| Depth | 71 mm |
| Width | 24 mm |
| Height | 100 mm |
| Weight | 140 g |
| I/O system | NX I/O Bus |
| IO link master | |
| Type of module | Analog I/O |
| Conversion time | 250 ms/unit |
| Signal processing | Free running |
| Input circuit type | Single-ended |
| I/O connection type | Push-in |
| Temperature input type | Pt100, Pt1000 |
| Number of analog inputs | 4 |
| Detachable I/O connector | |
| Linear analog input type | None |
| Number of I/O connectors | 2 |
| Number of analog outputs | 0 |
| Degree of protection (IP) | IP20 |
| Linear analog output type | None |
| SIL according to IEC 61508 | None |
| Suitable for safety functions | |
| Resolution of the analog inputs | 14 Bit |
Product Description
4 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000, resolution 0.1 °C, 250 ms/Unit, screwless push-in connectors, 24 mm wide
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
