NX-SID800

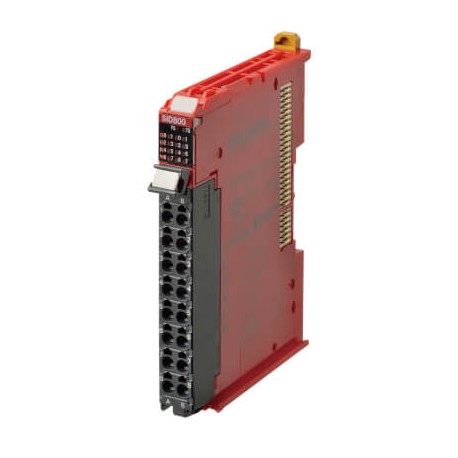

NX-SID800 NXS36005R 701996 OMRON NX Unit 8 Digital Security Inputs. PNP
$0.00USD
3334 in stock
Key Specifications
():NX-AUX02
Depth:71 mm
Width:12 mm
Height:100 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | NX-AUX02 |
| Depth | 71 mm |
| Width | 12 mm |
| Height | 100 mm |
| Weight | 90 g |
| I/O system | NX I/O Bus |
| IO link master | |
| Type of module | Safety I/O |
| Connection method | 4-wire |
| Signal processing | Free running |
| Digital input type | PNP |
| Digital output type | None |
| I/O connection type | Push-in |
| Communication port(s) | None |
| Number of COM terminals | 0 |
| Detachable I/O connector | |
| Number of I/O connectors | 1 |
| Number of digital inputs | 8 |
| Degree of protection (IP) | IP20 |
| Number of digital outputs | 2 |
| Permitted voltage at input | 20.4-28.8 V |
| SIL according to IEC 61508 | 3 |
| Number of IOG (V-) terminals | 0 |
| Number of IOV (V+) terminals | 0 |
| Suitable for safety functions | |
| Short-circuit protected outputs |
