NX-PG0232-5

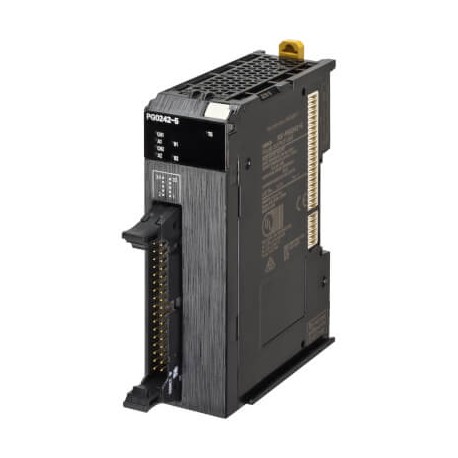

NX-PG0232-5 NX020119M 670274 OMRON NX Unit 2 Pulse Outputs NPN Line-driver MIL Connector
$814.51USD
42 in stock
Key Specifications
Depth:71 mm
Width:30 mm
Height:100 mm
Weight:70 g
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 71 mm |
| Width | 30 mm |
| Height | 100 mm |
| Weight | 70 g |
| I/O system | NX I/O Bus |
| IO link master | |
| Type of module | Pulse output |
| Signal processing | Synchronous, Task period prioritized |
| Digital input type | None |
| Digital output type | Line driver (RS-422), NPN, Voltage pulse |
| I/O connection type | MIL (plug not included) |
| Detachable I/O connector | |
| Number of I/O connectors | 1 |
| Degree of protection (IP) | IP20 |
| SIL according to IEC 61508 | None |
| Max. pulse output frequency | 4000 kHz |
| Max. encoder input frequency | 0 kHz |
| Number of IOG (V-) terminals | 3 |
| Number of IOV (V+) terminals | 3 |
| Suitable for safety functions | |
| Number of pulse output channels | 2 |
| Number of encoder input channels | 0 |
Product Description
2 x Line Driver Pulse Output, NPN, 4 Mpps, 1 x MIL connector, 12 mm wide
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
