NX-OD5121

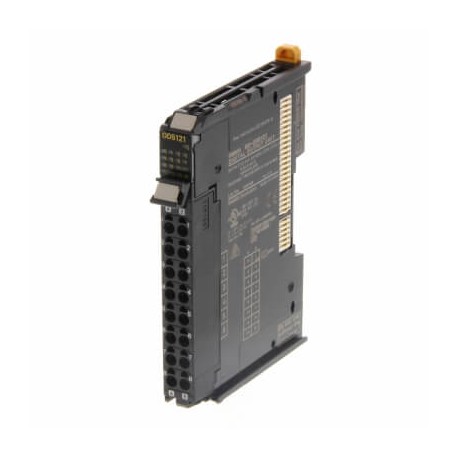

NX-OD5121 NX029103C NXOD5121,1 OMRON 16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Uni..
$0.00USD
4776 in stock
Key Specifications
():NX-PC0030
I/O system:NX I/O Bus
OFF/ON delay:0.1-0.8 ms
IO-Link master:
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | NX-PC0030 |
| I/O system | NX I/O Bus |
| OFF/ON delay | 0.1-0.8 ms |
| IO-Link master | |
| Output current | 0.5 A |
| Type of module | Digital I/O |
| Connection method | 1-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| Digital input type | None |
| Digital output type | NPN |
| I/O connection type | Push-in |
| Communication port(s) | None |
| Number of COM terminals | 0 |
| Detachable I/O connector | |
| Number of I/O connectors | 1 |
| Number of digital inputs | 0 |
| Product Depth (unpacked) | 80.1 mm |
| Product Width (unpacked) | 12 mm |
| Degree of protection (IP) | IP20 |
| Number of digital outputs | 16 |
| Product Height (unpacked) | 104.5 mm |
| Product Weight (unpacked) | 87 g |
| SIL according to IEC 61508 | None |
| Permitted voltage at output | 10.2-28.8 V |
| Number of IOG (V-) terminals | 0 |
| Number of IOV (V+) terminals | 0 |
| Suitable for safety functions | |
| Short-circuit protected outputs |
