In Stock Hot Product
NX-EC0212

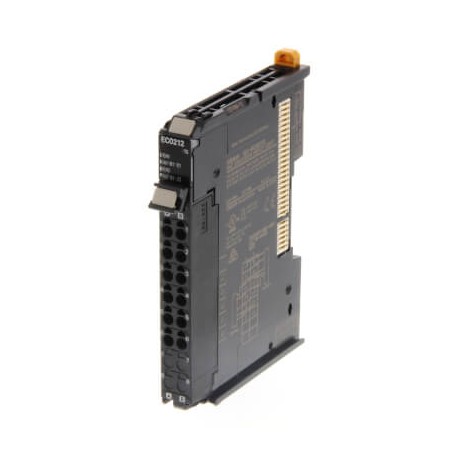

NX-EC0212 NX020102F 393634 OMRON NX Unit 2 Incremental NPN Encoder Inputs
$0.00USD
3768 in stock
Key Specifications
():NX-AUX02
Depth:71 mm
Width:12 mm
Height:100 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | NX-AUX02 |
| Depth | 71 mm |
| Width | 12 mm |
| Height | 100 mm |
| Weight | 70 g |
| I/O system | NX I/O Bus |
| IO link master | |
| Type of module | Encoder input |
| Signal processing | Free running, Synchronous, Task period prioritized |
| Digital input type | Incremental encoder, NPN |
| Digital output type | None |
| I/O connection type | Push-in |
| Detachable I/O connector | |
| Number of I/O connectors | 1 |
| Degree of protection (IP) | IP20 |
| SIL according to IEC 61508 | None |
| Max. pulse output frequency | 0 kHz |
| Max. encoder input frequency | 500 kHz |
| Number of IOG (V-) terminals | 2 |
| Number of IOV (V+) terminals | 2 |
| Suitable for safety functions | |
| Number of pulse output channels | 0 |
| Number of encoder input channels | 2 |
Product Description
2 x Incremental Encoder NPN Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
