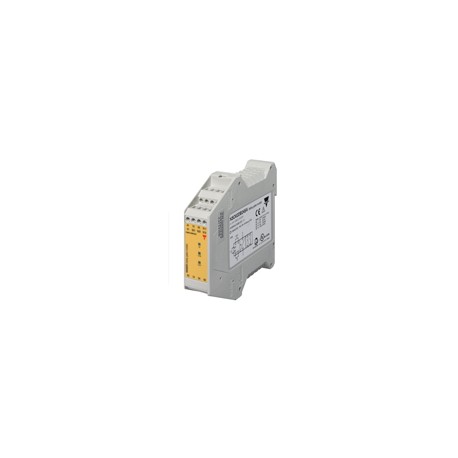

NSO13DB24SA

Safety ModulesSafety Gate and Safety Magnetic SensorTypesNSO02D, NSO13DScrew, fixedScrew, detachable• Safety Category 4, Performance Level e, according to EN 13849-1• Safety Category 4 according to EN 954-1• Category 0 Emergency Stop (EN 60204-1)• Input type: 2 NO• 2 x 6 A NO safety outputs (NSO02D)• 3 x 6 A NO safety outputs and 1 x 6 A NC auxiliary output (NSO13D)• Automatic / manual or monitored manual reset• Single / double channel operations• LED indication for outputs status and power supply ON• Connection by fixed or detachable terminals• For mounting on DIN-rail in accordance with DIN/EN 50022• 22.5 mm Euronorm housingProduct DescriptionOrdering KeyNSO0 2 D B24 S ASafety gateand safety magnetic sensor modules according to EN 60204-1, EN292-1/-2,EN418andEN1088.This family of safety module inSafetyCategory4,TypeSelectionPerformance Level e, includes fixed screw and detachable screw as well as automatic/manual or monitored manual restart versions.Housing Function Auxiliary outputs Safety outputs Safety category Power supply Terminals Start/Reset typeAuxiliary outputsSafetyoutputs Terminals Start/Reset type Supply: 24 VAC/DC2 NOScrew, fixedAutomatic / Manual N SO 0 2 D B24 S A2 NOScrew, fixedMonitored manualN SO 0 2 D B24 S C2 NOScrew, detachableAutomatic / Manual N SO 0 2 D B24 D A2 NOScrew, detachableMonitored manualN SO 0 2 D B24 D C1 NC3 NOScrew, fixedAutomatic / Manual N SO 1 3 D B24 S A1 NC3 NOScrew, fixedMonitored manualN SO 1 3 D B24 S C1 NC3 NOScrew, detachableAutomatic / Manual N SO 1 3 D B24 D A1 NC3 NOScrew, detachableMonitored manualN SO 1 3 D B24 D CTimeSpecificationOutput SpecificationDelay ON energisation < 150 ms Delay ON de-energisation< 30 ms Recovery time ≥ 30 ms Channel simultaneityduring outputs closingInfiniteInput operating to STARToperating delayNSO...C> 500 msInputSpecificationsFunction2 NO, voltage freeInput currentTerminals S11-S12 max 10 mA Terminals S21-S22 max 10 mAExternal contact resistanceTerminals S11-S12 max. 60ΩTerminals S21-S22 max. 60ΩSafety outputsCategory 4, PerformanceLevel e (EN 13849-1) NSO02D2 NO (13-14, 23-24) NSO13D3 NO (13-14, 23-24, 33-34)Auxilary outputNSO13D1 NC (41-42)Rated insulation voltage 250 VAC (rms)Contact ratings (AgSnO2)2 µm AuSafety outputsResistive loads AC1 6 A @ 230 VAC DC12 6 A @ 24 VDCSmall inductive loadsAC153 A @ 230 VAC DC13 2.5 A @ 24 VDCAuxiliary output 6A, 24 VAC/DCExternal contact fuseprotection5 A fast, 4 A slowMechanical life> 107 operations Electrical life> 105 operations Dielectric strengthDielectric voltage4 kVAC (rms)1Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network.27/09/12
