NPF-60D-48D2

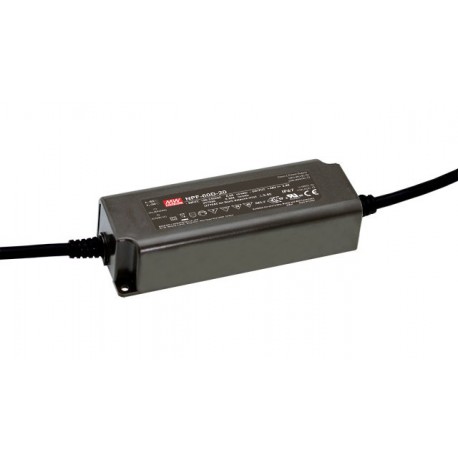

NPF-60D-48D2 MEANWELL AC-DC Single output LED Constant current (CC) with Active PFC, Output 48VDC / 1.25A, S..
$0.00USD
4303 in stock
Key Specifications
Name:NPF-60D-48D2
State:Requires Minimum Quantities
Format:Box
Series:NPF-60D2
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | NPF-60D-48D2 |
| State | Requires Minimum Quantities |
| Format | Box |
| Series | NPF-60D2 |
| Dimming | Smart |
| Approvals | CCC, CE, ENEC, UL |
| Power (W) | 60,00 |
| Subformato | IP67 |
| Width (mm) | 53.00 |
| Height (mm) | 35.00 |
| AC input Max | 305,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | Sixty |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 150.00 |
| Long Description | LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in box waterproof plasticIP67.Input range90-305Vca47-63Hz.Output in constant current1250mA.Range of output voltage28,8 @ 48vdcaccording to demade the load.Power:60W.Efficiency typical:90%.Regulation Smart Dimmingwith programmable functions.Input class II without grounding.Factor corrector, power>0,95to 230vac at full load.Consumption without load <0,15 W.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):150 x 53 x 35mm.5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 48V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US.The version of D2 with Smart Timer Dimming allows you to program through a PC, the curves of regulation of the driver. We can set up between 2 and 5 different levels for the night. You can make bends fixed on the basis of a few hours of operation, a proportional adjustment which can adjust the intervals according to the power-on hours, or an adjustment with the point of midnight, which maintains the central level fixed, and adjusts the times of the curves of the ends. In this way we can achieve greater energy savings and adjust the brightness levels according to the level of occupation.In addition to these adjustments in the versions of D2 you can limit the maximum output current, for example if we use a driver 1050mA and you only need to 900mA can be adjusted to the maximum value of the output current. We can also go to offsetting the loss of brightness of the LEDs with the hours of operation to always maintain a level of constant brightness.The adjustment of the transitions between different levels of regulation can be set up, so we can get a flowing transition between levels, for example the 100% and 50%. Each level you can set your own transition.This driver also saved the hours of operation of the driver and the LED module, and allows a function to Override, which allows us to easily disable from the box on the programming in for example the case of an accident or a party we would want to have the maximum light level for a night.The driver does not have a clock physical that is always working, if not that you have a timer that counts the operating hours of the past 7 days and based on those hours applied to the appropriate settings. Can be set up so that no account is taken of readings below a certain number of hours for which no account is taken of possible outages or problems with the programming of on and off of the box.With version Smart Timer dimming can achieve energy savings most important, always maintaining a level of brightness appropriate and with a stand-alone system that enables us to avoid any maintenance cost.To be able to program the computer we need the programming interface SDP-001 that allows you to connect the drivers ELG to a PC through the USB port. To be able to program the computer we need to connect it to the LED modules and the power grid. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | One thousand two hundred fifty |
| Intensity of Minimum Output (mA) | 1.250,00 |
| Intensity of Output Maximum (mA) | 1.250,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver dimmable.
