NPF-60-54

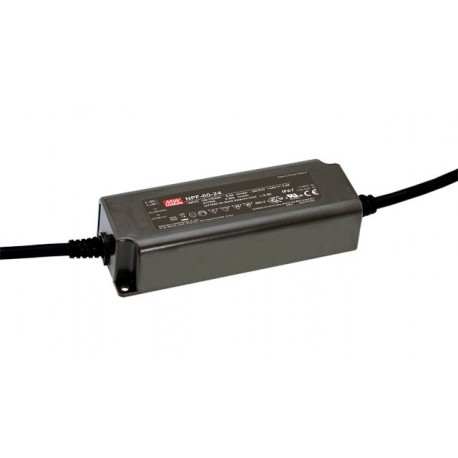

NPF-60-54 MEANWELL AC-DC Single output LED driver mix mode (CC+CV) with Active PFC, Output 54VDC / 1.12A
$0.00USD
3666 in stock
Key Specifications
Name:NPF-60-54
State:Recommended Model
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | NPF-60-54 |
| State | Recommended Model |
| Stock | Yes |
| Format | Box |
| Series | NPF-60 |
| Approvals | CCC, CE, ENEC, UL |
| Power (W) | 60,40 |
| Subformato | IP67 |
| Width (mm) | 53.00 |
| Height (mm) | 35.00 |
| AC input Max | 305,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 60.4 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 150.00 |
| Long Description | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in box Waterproof plasticIP67.Input range90-305Vca47-63Hz.Output in constant current1120mA.Range of output voltage32,4 to 54Vccaccording to demade the load.Power:60,4 W.Efficiency typical:90%.Input class II without grounding.Factor corrector, power>0,95to 230vac at full load.Consumption without load <0,15 W.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):150 x 53 x 35mm.5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 54V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | 1100, 1150 |
| Intensity of Minimum Output (mA) | 1.120,00 |
| Intensity of Output Maximum (mA) | 1.120,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
