NLC-IOX-04I-02QRD-05A

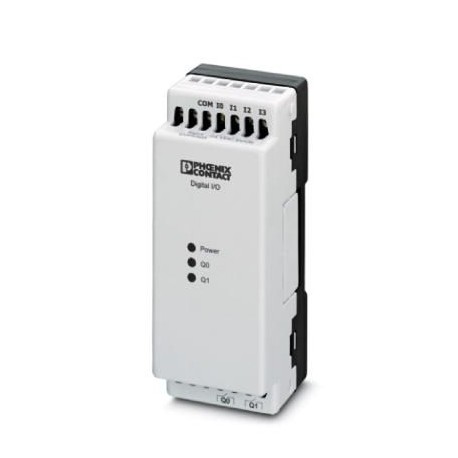

NLC-IOX-04I-02QRD-05A 2702032 PHOENIX CONTACT I/O extension module
$0.00USD
3764 in stock
Key Specifications
GTIN:4046356949514
Note:Made to Order (non-returnable)
Orderkey:2702032
(Supply):200 µs (OFF)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356949514 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2702032 |
| (Supply) | 200 µs (OFF) |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 465 (C-8-2015) |
| Packing unit | 1 pc |
| Country of origin | IN (India) |
| Input name (Supply) | Digital inputs |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 85389099 |
| Number of inputs (Supply) | 4 |
| Connection method (Supply) | Screw connection |
| Depth (Key Commercial Data) | 43 mm |
| Width (Key Commercial Data) | 40 mm |
| Height (Key Commercial Data) | 103.5 mm |
| Output name (Digital inputs) | Relay output |
| Typical response time (Supply) | 100 µs (on) |
| Mounting type (Digital outputs) | DIN rail mounting |
| Degree of protection (Dimensions) | IP20 |
| Description of the input (Supply) | PNP |
| Connection method (Digital inputs) | Screw connection |
| Number of outputs (Digital inputs) | 2 |
| Output description (Digital inputs) | Relay output |
| Supply voltage (Ambient conditions) | 24 V DC |
| Weight per Piece (excluding packing) | 183.500 g |
| Nominal input current at UIN (Supply) | 1.2 mA |
| Input voltage range "0" signal (Supply) | 0 V DC ... 5 V DC |
| Input voltage range "1" signal (Supply) | 11 V DC ... 30 V DC |
| Supply voltage range (Ambient conditions) | 18 V DC ... 24 V DC |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 70 °C |
| Maximum output current per module (Digital inputs) | 10 A |
| Maximum output current per channel (Digital inputs) | 5 A |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Maximum output current per module / terminal block (Digital inputs) | 10 A |
