NLC-050-024D-06I-04QTP-00A

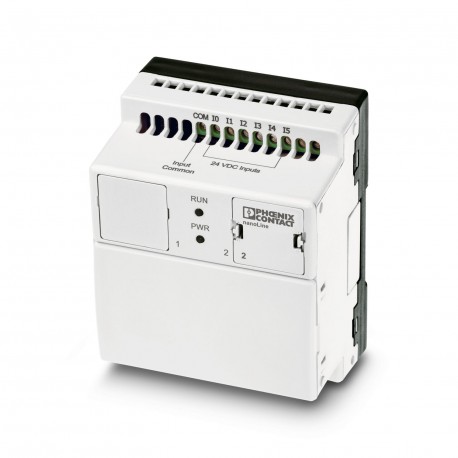

NLC-050-024D-06I-04QTP-00A 2701027 PHOENIX CONTACT Base unit
$0.00USD
3580 in stock
Key Specifications
:< 100 mA (Off)
Color:white
Depth:60 mm
Width:80.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| < 100 mA (Off) | |
| Color | white |
| Depth | 60 mm |
| Width | 80.5 mm |
| Height | 103.5 mm |
| Input name | Digital inputs |
| Output name | Digital outputs |
| Product type | Base unit |
| Input voltage | 24 V DC |
| Mounting type | DIN rail mounting |
| Output voltage | 24 V DC |
| Product family | Nanoline |
| Realtime clock | Optional module |
| Supply voltage | 24 V DC (Power available to the I/O and Communications modules) |
| Engineering tool | nanoNavigator 1 or 2 |
| Number of inputs | 6 |
| Connection method | Screw connection |
| Number of outputs | 4 |
| Nominal load, lamp | 12 W |
| Output description | PNP outputs |
| Protective circuit | Short-circuit and overload protection |
| Dimensional drawing | |
| Nominal load, ohmic | 12 W |
| Degree of protection | IP20 |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Typical response time | 60 µs (on) |
| Nominal load, inductive | 12 VA ((1.2H)) |
| Power supply connection | Screw connection |
| Description of the input | EN 61131-2 type 1 NPN/PNP |
| Max. current consumption | 250 mA |
| Typical current consumption | 92 mA |
| Nominal input current at UIN | 5 mA DC (On) |
| Input voltage range "0" signal | 0 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Permissible humidity (operation) | 90 % |
| Maximum output current per module | 2 A |
| Maximum output current per channel | 500 mA |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 90 % |
| Maximum output current per module / terminal block | 2 A |
| Maximum operating frequency with ohmic nominal load | 100 Hz |
Product Description
Nanoline 24 V DC base unit. Equipped with 6 digital inputs and 4 digital PNP output channels. I/O channels can be added and a maximum of 3 I/O expansion modules can be used. Optional communication mod
