In Stock Hot Product
NEXI150-3H-CGL-IP

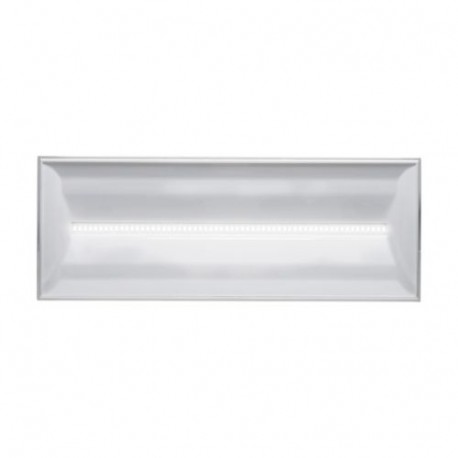

NEXI150-3H-CGL-IP EATON ELECTRIC NEXITECH LED 150LM 3H IP65 CGLINE+
$0.00USD
3434 in stock
Key Specifications
Feature Name:Feature Value
Width (EF000008):125 mm
Length (EF001438):308 mm
Lamp type (EF002423):LED non-replaceable
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Width (EF000008) | 125 mm |
| Length (EF001438) | 308 mm |
| Lamp type (EF002423) | LED non-replaceable |
| Lamp holder (EF000048) | None |
| Height/depth (EF001456) | 53 mm |
| Power factor (EF025740) | 0.55 |
| Voltage type (EF000187) | AC |
| Built-in width (EF000846) | 95 mm |
| Housing colour (EF000136) | White |
| Material cover (EF004284) | Plastic transparent |
| With pictogram (EF011099) | No |
| Built-in length (EF004265) | 272 mm |
| Connection type (EF000124) | Plug-in connection |
| Impact strength (EF004293) | IK07 |
| Mounting method (EF000003) | Surface mounting/recessed mounting |
| Nominal voltage (EF005127) | 220 V |
| Number of poles (EF001391) | 2 |
| Housing material (EF001596) | Plastic |
| Light distributor (EF012170) | Reflector |
| Max. system power (EF009347) | 3.6 W |
| With light source (EF005905) | Yes |
| Battery technology (EF004351) | NiCd |
| Colour temperature (EF009346) | 5053 K |
| Power supply system (EF000233) | Peripheral (individual battery) |
| Monitoring equipment (EF008091) | Safety module for monitoring (central feeded system) |
| Recognition distance (EF008732) | 20 m |
| Type of control gear (EF000381) | LED driver constant current |
| Built-in height/depth (EF023518) | 96 mm |
| Nominal operation time (EF012518) | 3 h |
| Conductor cross section (EF000085) | 2.5 mm² |
| Number of lighting heads (EF004258) | 48 |
| Degree of protection (IP) (EF005474) | IP65 |
| Suitable for labelling type (EF001277) | Insert sheet/plate |
| Luminous flux in standby mode (EF011954) | 60 lm |
| With remote switch connection (EF007947) | Yes |
| Suitable for number of light sources (EF006436) | 1 |
| Protection class according to IEC 61140 (EF000004) | II |
| Rated luminous flux according to IEC 62722-2-1 (EF009349) | 150 lm |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
Product Description
Eaton NexiTech LED, Safety lighting/ exit sign, 20m viewing distance, Escape route, CGLine + technology, Maintained / Non-Maintained operation, IP65, 150lm, 3 hour duration
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
