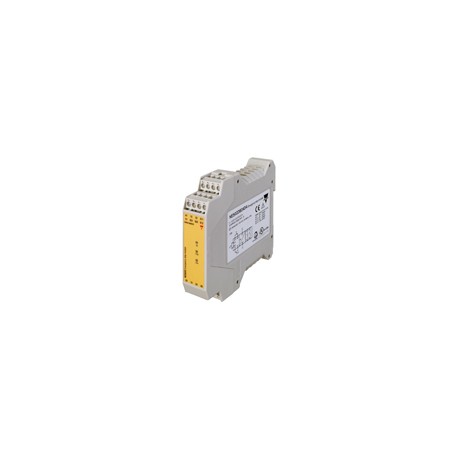

Safety ModulesEmergency Stop and Safety GateTypes NES02D, NES13DScrew, fixedScrew, detachable• Safety Category 4, Performance Level e according to EN 13849-1• Safety Category 4 according to EN 954-1• Category 0 Emergency Stop (EN 60204-1)• 2 x 6 A NO safety outputs (NES02D)• 3 x 6 A NO safety outputs and 1 x 6 A NC auxiliary out- put (NES13D)• Automatic / manual or monitored manual reset• Single / double channel operations• LED indication for outputs status and power supply ON• Connection by fixed or detachable terminals• For mounting on DIN-rail in accordance with DIN/EN50 022• 22.5 mm Euronorm housingProduct Description Ordering KeyN ES 0 2 D B24 S AEmergency StopandSafety Gatemodulesaccordingto EN 60204-1, EN 292-1/-2, EN418 and EN1088.This family of safety module in Safety Category 4, Perfor- mance Level e, includesfixed screw and detachable screw as well as automat- ic/manual or monitored manual restart versions.Housing Function Auxiliary outputs Safety outputs Safety category Power supply Terminals Start/Reset typeType SelectionAuxiliary Safety TerminalsStart/Reset type Supply: 24 VAC/DCoutputs outputs2 NO Screw, fixed Automatic / Manual N ES 0 2 D B24 S A2 NO Screw, fixed Monitored manualN ES 0 2 D B24 S C2 NO Screw, detachable Automatic / Manual N ES 0 2 D B24 D A2 NO Screw, detachable Monitored manualN ES 0 2 D B24 D C1 NC3 NO Screw, fixed Automatic / Manual N ES 1 3 D B24 S A1 NC3 NO Screw, fixed Monitored manualN ES 1 3 D B24 S C1 NC3 NO Screw, detachable Automatic / Manual N ES 1 3 D B24 D A1 NC3 NO Screw, detachable Monitored manualN ES 1 3 D B24 D CTimeSpecificationsDelay ON energisation < 150 ms Delay ON de-energisation≤ 30 ms Recovery time ≥ 30 ms Channel simultaneityduring outputs closing InfiniteInput operating to STARToperating delayNES...C > 500 msInputspecificationsFunction2 NO, voltage freeInput currentNES02DTerminals S11-S21max 50 mA Terminals S12-S22max 60 mA Switching max 470 mANES13DTerminals S11-S12max 60 mA Terminals S21-S22max 50 mA Switching max 470 mAOutput SpecificationsSafety outputsCategory 4, PerformanceLevel e (EN 13849-1) NES02D2 NO (13-14, 23-24) NES13D3 NO (13-14, 23-24, 33-34)Auxilary outputNES13D1 NC (41-42)Rated insulation voltage 250 VAC (rms)Contact ratings (AgSnO2) 2 µm AuResistive loads AC1 6 A @ 230 VACDC12 6 A @ 24 VDC Small inductive loads AC15 3 A @ 230 VACDC13 2.5 A @ 24 VDCExternal contact fuseprotection5 A fast, 4 A slowMechanical life> 107 operations Electrical life> 105 operations Dielectric strengthDielectric voltage4 kVAC (rms)Specifications are subject to change without notice (15.01.10)1
