NBC-M8MSD/2,0-93C/M8MRD

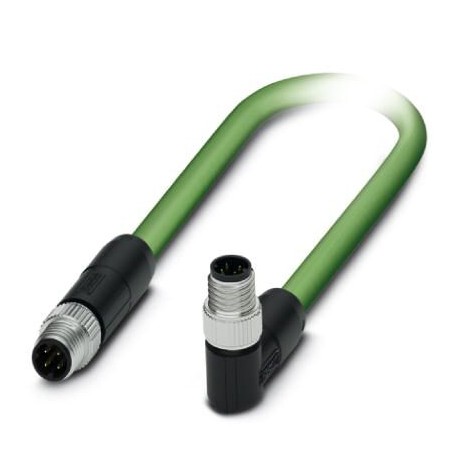

NBC-M8MSD/2,0-93C/M8MRD 1080539 PHOENIX CONTACT Network cable, PROFINET CAT5 (100 Mbps), EtherCAT
$0.00USD
4260 in stock
Key Specifications
GTIN:4055626804835
(Cable):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Orderkey:1080539
(Drawings):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626804835 |
| (Cable) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Orderkey | 1080539 |
| (Drawings) | |
| Catalog page | Page 395 (C-2-2019) |
| Packing unit | 1 pc |
| (Dimensions) | IP67 |
| (General data) | Brass, nickel-plated (Screw connection) |
| Country of origin | PL (Poland) |
| ETIM 5.0 (eCl@ss) | EC002599 |
| ETIM 6.0 (eCl@ss) | EC001262 |
| ETIM 7.0 (eCl@ss) | EC001262 |
| China RoHS (Cable) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable) | Lead 7439-92-1 |
| Color (General data) | black |
| Custom tariff number | 85444290 |
| (Ambient conditions) | EtherCAT®CAT5 (IEC 11801), 100 Mbps |
| Coding (General data) | D (Data) |
| Torque (General data) | 0.2 Nm |
| Shielded (General data) | yes |
| Head type (General data) | Plug straight M8 / IP67 |
| (Characteristics head 1) | Brass, nickel-plated (Screw connection) |
| Note (Ambient conditions) | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
| Length of cable (Drawings) | 2 m |
| (Standards and Regulations) | -40 °C ... 70 °C (cable, flexible installation) |
| eCl@ss 8.0 (Classifications) | 27060308 |
| eCl@ss 9.0 (Classifications) | 27060308 |
| Color (Characteristics head 1) | black |
| Coding (Characteristics head 1) | D (Data) |
| Torque (Characteristics head 1) | 0.2 Nm |
| Degree of protection (Dimensions) | IP65 |
| Shielded (Characteristics head 1) | yes |
| Head type (Characteristics head 1) | Plug angled M8 / IP67 |
| Rated voltage (Ambient conditions) | 48 V AC |
| Material (component) (General data) | CuSn (Contact) |
| Insulation resistance (General data) | ≥ 100 MΩ |
| Weight per Piece (excluding packing) | 0.000 g |
| Shielding (Standards and Regulations) | Aluminum-coated foil, tinned copper braided shield |
| Cable type (Standards and Regulations) | PROFINET drag chain CAT5 |
| Attenuation (Standards and Regulations) | 2.1 dB (with 1 MHz) |
| Wire colors (Standards and Regulations) | White, yellow, blue, orange |
| Acceleration (Standards and Regulations) | 4 m/s² |
| Cable weight (Standards and Regulations) | 61 kg/km |
| Halogen-free (Standards and Regulations) | yes |
| Number of positions (Ambient conditions) | 4 |
| Signal speed (Standards and Regulations) | 0.66 c |
| Overall twist (Standards and Regulations) | Star quad |
| Signal type/category (Ambient conditions) | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Torsion force (Standards and Regulations) | ± 30 °/m |
| Bending radius (Standards and Regulations) | 100 mm |
| Insertion/withdrawal cycles (General data) | ≥ 100 |
| Signal runtime (Standards and Regulations) | 5.3 ns/m |
| Standards/regulations (Ambient conditions) | M8 connector IEC 61076-2-114 |
| Wave impedance (Standards and Regulations) | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
| AWG signal line (Standards and Regulations) | 22 |
| Cable structure (Standards and Regulations) | 1x4xAWG22/7; SF/TQ |
| Loop resistance (Standards and Regulations) | ≤ 120.00 Ω/km |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Traversing path (Standards and Regulations) | 10 m |
| Traversing rate (Standards and Regulations) | 4 m/s |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 90 °C (M12 connector) |
| Flame resistance (Standards and Regulations) | according to IEC 60332-1-2 |
| Other resistance (Standards and Regulations) | UV resistant |
| Product labeling (Standards and Regulations) | "sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7 Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier) |
| Material (component) (Characteristics head 1) | CuSn (Contact) |
| Resistance to oil (Standards and Regulations) | in accordance with DIN EN 60811-2-1 |
| Ambient temperature (operation) (General data) | -25 °C ... 90 °C |
| Conductor material (Standards and Regulations) | Tin-plated Cu litz wires |
| Insulation resistance (Characteristics head 1) | ≥ 100 MΩ |
| Special properties (Standards and Regulations) | Electrical properties according to EN 50288-2-2 |
| Coupling resistance (Standards and Regulations) | ≤ 20.00 mΩ/m (at 10 MHz) |
| Signal type/category (Standards and Regulations) | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Tensile strength GRP (Standards and Regulations) | ≤ 150 N |
| Insulation resistance (Standards and Regulations) | ≥ 500 MΩ*km |
| Standards/specifications (Characteristics head 2) | M8 connector IEC 61076-2-114 |
| External sheath, color (Standards and Regulations) | green RAL 6018 |
| Material, inner sheath (Standards and Regulations) | FRNC |
| Nominal voltage, cable (Standards and Regulations) | 600 V (UL rating) |
| Outer sheath thickness (Standards and Regulations) | approx. 0.9 mm |
| Outer sheath, material (Standards and Regulations) | PUR |
| Test voltage Core/Core (Standards and Regulations) | 2000 V (50 Hz, 1 min.) |
| Conductor cross section (Standards and Regulations) | 4x 0.34 mm² |
| Optical shield covering (Standards and Regulations) | 85 % |
| Insertion/withdrawal cycles (Characteristics head 1) | ≥ 100 |
| Number of bending cycles (Standards and Regulations) | 3000000 |
| Test voltage Core/Shield (Standards and Regulations) | 2000 V (50 Hz, 1 min.) |
| Cable type (abbreviation) (Standards and Regulations) | 93C |
| External cable diameter D (Standards and Regulations) | 6.5 mm ±0.2 mm |
| No. of positions (pin connector pattern) (General data) | 4 |
| Ambient temperature (operation) (Characteristics head 1) | -25 °C ... 90 °C |
| Circuit diagramContact assignment of M8 plugs (Drawings) | |
| Material conductor insulation (Standards and Regulations) | PE |
| Ambient temperature (operation) (Standards and Regulations) | -40 °C ... 70 °C (cable, fixed installation) |
| Conductor structure signal line (Standards and Regulations) | 7x 0.25 mm |
| Dimensional drawingPlug M8 x 1, straight, shielded (Drawings) | |
| Ambient temperature (installation) (Standards and Regulations) | -20 °C ... 60 °C |
| Core diameter including insulation (Standards and Regulations) | 1.5 mm |
| Near end crosstalk attenuation (NEXT) (Standards and Regulations) | 80 dB (with 1 MHz) |
| No. of positions (pin connector pattern) (Characteristics head 1) | 4 |
| Ambient temperature (storage/transport) (Standards and Regulations) | -50 °C ... 70 °C |
| Minimum bending radius, fixed installation (Standards and Regulations) | 5 x D |
| Minimum bending radius, flexible installation (Standards and Regulations) | 7.5 x D |
Product Description
Network cable, PROFINET CAT5 (100 MBit/s), EtherCAT® CAT5 (100 MBit/s), 4-pole halogen-free, shielded (Advanced Shielding Technology), Straight M8 connector, coding: D / IP67, a Clanged M8 connector,
