In Stock Hot Product
NBC-500,0-94E

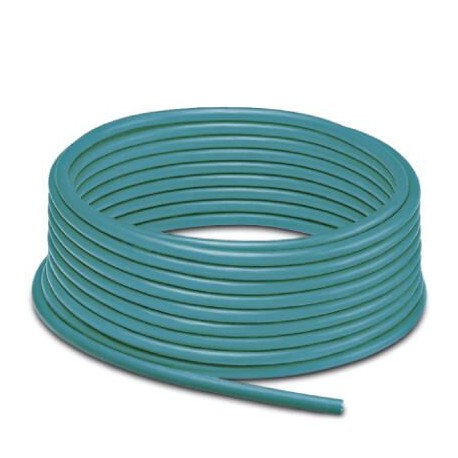

NBC-500,0-94E 1408572 PHOENIX CONTACT Cable ring, bus system cable, Ethernet, 8-wire, shielded, FRNC, blue o..
$0.00USD
3584 in stock
Key Specifications
GTIN:4046356826396
(Cable):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Orderkey:1408572
(Drawings):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356826396 |
| (Cable) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Orderkey | 1408572 |
| (Drawings) | |
| Packing unit | 1 |
| (Dimensions) | 30 V DC |
| (General data) | < 100 mΩ (at 100 MHz) |
| UNSPSC 11 (ETIM) | 31251501 |
| ETIM 3.0 (eCl@ss) | EC001855 |
| ETIM 4.0 (eCl@ss) | EC002599 |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 6.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001855 |
| China RoHS (Cable) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable) | |
| UNSPSC 13.2 (ETIM) | 31251501 |
| UNSPSC 19.0 (ETIM) | 31251501 |
| UNSPSC 20.0 (ETIM) | 31251501 |
| UNSPSC 21.0 (ETIM) | 31251501 |
| UNSPSC 6.01 (ETIM) | 31251501 |
| UNSPSC 12.01 (ETIM) | 31251501 |
| Custom tariff number | 85444995 |
| UNSPSC 7.0901 (ETIM) | 31251501 |
| Shielding (General data) | Aluminum-lined polyester foil, tinned copper braided shield |
| Cable type (General data) | Ethernet |
| Length of cable (Drawings) | 500 m |
| Rated voltage (Dimensions) | 30 V AC |
| Wire colors (General data) | White-blue, white-orange, white-green, white-brown |
| Cable weight (General data) | 55 kg/km |
| Halogen-free (General data) | According to IEC 60754-2 |
| Signal speed (General data) | 0.6 c |
| UL AWM style (General data) | 10797 (80°C/30 V) |
| Copper weight (General data) | 32.8 kg/km |
| Overall twist (General data) | 4 pairs, twisted |
| Twisted pairs (General data) | 2 cores to the pair |
| eCl@ss 4.0 (Classifications) | 27060300 |
| eCl@ss 4.1 (Classifications) | 27060300 |
| eCl@ss 5.0 (Classifications) | 27061800 |
| eCl@ss 5.1 (Classifications) | 27061800 |
| eCl@ss 6.0 (Classifications) | 27279200 |
| eCl@ss 7.0 (Classifications) | 27279218 |
| eCl@ss 8.0 (Classifications) | 27279218 |
| eCl@ss 9.0 (Classifications) | 27060311 |
| Cable capacity (General data) | < 56 nF/km |
| Signal runtime (General data) | 5.7 ns/m |
| Wave impedance (General data) | 100 Ω ±5 Ω (at 100 MHz) |
| AWG signal line (General data) | 23 |
| Cable impedance (General data) | < 5 mΩ (with 1 MHz) |
| Cable structure (General data) | 4x2xAWG23/1; S/FTP |
| Flame resistance (General data) | according to IEC 60332-3-24 (Cat. C ) |
| Number of positions (Dimensions) | 8 |
| Resistance to oil (General data) | according to IEC 60811-2-1 |
| Conductor material (General data) | Bare Cu wire |
| Signal type/category (Dimensions) | Ethernet CAT7, 10 Gbps |
| Conductor resistance (General data) | < 75 Ω/km |
| Signal type/category (General data) | Ethernet CAT7, 10 Gbps |
| Tensile strength GRP (General data) | 80 N |
| Insulation resistance (General data) | > 5 GΩ*km |
| Concentration of fumes (General data) | in accordance with IEC 61034 |
| External sheath, color (General data) | water blue RAL 5021 |
| Nominal voltage, cable (General data) | 30 V AC |
| Outer sheath, material (General data) | FRNC |
| Test voltage Core/Core (General data) | 2500 V DC |
| Type of pair shielding (General data) | Aluminum-lined polyester foil |
| Conductor cross section (General data) | 4x 2x 0.3 mm² |
| Optical shield covering (General data) | 65 % |
| Cable type (abbreviation) (General data) | 94E |
| External cable diameter D (General data) | 8 mm ±0,3 mm |
| Material conductor insulation (General data) | Foamed PE |
| Ambient temperature (operation) (General data) | -20 °C ... 80 °C (Cable) |
| Conductor structure signal line (General data) | 1x |
| Ambient temperature (installation) (General data) | 0 °C ... 50 °C |
| Core diameter including insulation (General data) | 1.45 mm ±0.05 mm |
| Smallest bending radius, fixed installation (General data) | 30 mm |
| Smallest bending radius, movable installation (General data) | 60 mm |
Product Description
Cable ring, CAT7 Ethernet (10 GBit/s), 8-pole halogen-free, shielded, cable length: 500 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable cross sectionEthernet [94E]
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
