MVE/00-0E

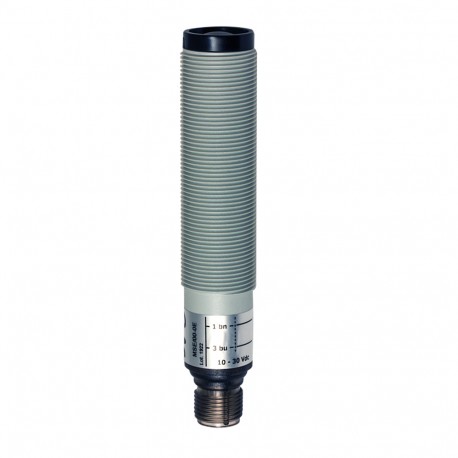

MVE/00-0E MICRO DETECTORS Photoelectric sensor Emitter plastic plug M12
$0.00USD
3036 in stock
Key Specifications
Weight:30g
Emission:Infrared (880nm)
Dimensions:M18x1/L=78,9 mm
Connections:Output connector M12
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Emission | Infrared (880nm) |
| Dimensions | M18x1/L=78,9 mm |
| Connections | Output connector M12 |
| Output type | TRIAC |
| Load current | 5...300mARMS |
| Exit function | NC |
| Position lens | Axial |
| Repeatability | 5% |
| Thermal drift | ≤10%Sr |
| body material | PBT |
| Certifications | CE, cRUus |
| LED indicators | Red |
| Supply voltage | 20...253Vca/50...60Hz |
| Leakage current | 6A |
| Tightening torque | 1Nm |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Accessories included | Nuts metal (2x) |
| Degree of protection | IP67 |
| Transmitter/Receiver | Issuer |
| Operating temperature | - 25°C...+ 60° C (without condensation) |
| Principle of operation | Barrier |
| Sensitivity adjustment | Not |
| Maximum residual ripple | ≤ 10% |
| Delay to the availability | 200ms |
| Immunity to ambient light | To 3,000 lux (incandescent lamp), 10,000 lux (sunlight) |
| Voltage drop to the output | ≤3V IL=300mA |
| Electromagnetic compatibility | According to en 60947-5-2 |
| Material of the active surface | PMMA |
| Absorption of current in the vacuum | ≤30mARMS |
Product Description
MVE/00-0E Photoelectric sensor Emitt. plast. conn. M12
