MT50-9VI

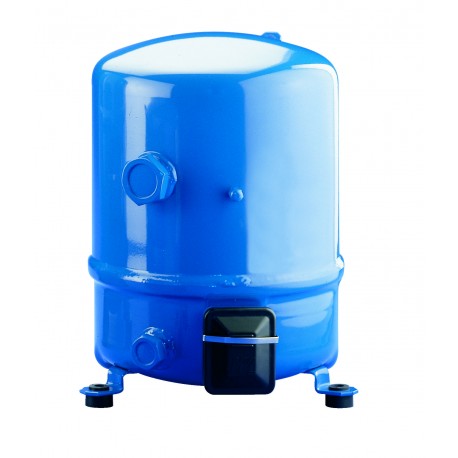

MT50-9VI DANFOSS REFRIGERATION Reciprocating compressor, MT50HK9AVE
$0.00USD
4714 in stock
Key Specifications
LRA:78 A
MCC:13.5 A
Phase:3
Colour:Blue
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| LRA | 78 A |
| MCC | 13.5 A |
| Phase | 3 |
| Colour | Blue |
| Cylinder | 2 |
| Economizer | No |
| Net weight | 37 Kg |
| Technology | Reciprocating |
| Description | MT050-9 |
| Refrigerant | R22 |
| Shipped oil | Initial oil charge |
| Gross weight | 39.5 Kg |
| Model number | MT50HK9AVE |
| Product type | MT |
| Relief valve | 30 bar/8 bar |
| Diameter [mm] | 288 mm |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Oil reference | 160P |
| Segment usage | Air conditioningRefrigeration MT |
| Drawing number | 8502012g |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Frequency [Hz] | 60 |
| Glass mounting | Threaded |
| Oil charge [L] | 1.8 L |
| Packing format | Single pack |
| Viscosity [cP] | 32 cP |
| Brand technique | Reciprocating compressor |
| Connection type | Rotolock |
| Generation code | A |
| Capacity control | Fixed speed |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting standard | Rotolock |
| Motor protection | Internal overload protector |
| Oil equalization | 3/8'' flare SAE |
| Packing quantity | 1 |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Type designation | Compressor |
| Approval standard | CEUL |
| GP LP torque [Nm] | 15 N-m |
| Glass torque [Nm] | 50 N-m |
| Power connections | Spade |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 413 mm |
| Configuration code | Single |
| Swept volume [cm3] | 85.64 cm3 |
| IP protection class | IP55 (with cable gland) |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Mounting torque [Nm] | 15 N-m |
| Packaging width [mm] | 365 mm |
| Shipped instructions | Installation instructions |
| Test dif [bar] [Max] | 30 bar |
| Packaging height [mm] | 455 mm |
| Packaging length [mm] | 395 mm |
| Packaging weight [Kg] | 39 kg |
| Oil equalization torque [Nm] | 30 N-m |
| Suction connection size [in] | 1.75 in |
| Refrigerant charge [kg] [Max] | 5 kg |
| Discharge connection size [in] | 1.25 in |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 265 mm |
| Number of starts per hour [Max] | 12 |
| Discharge connection height [mm] | 74 mm |
| Nominal cooling capacity at 50Hz | 11.1 kW |
| Nominal cooling capacity at 60Hz | 14.8 kW |
| Compressor power supply [V/Ph/Hz] | 380/3/60 |
| Suction connection pipe size [in] | 0.875 in |
| Nominal cooling capacity 60 kBTU/h | 50.51 KBtu/h |
| Discharge connection pipe size [in] | 0.75 in |
| Suction connection rotolock size [in] | 1.75 in |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Discharge connection rotolock size [in] | 1.25 in |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 418 V |
| Suction connection mounting torque [Nm] | 110 N-m |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Suction connection sleeve pipe size [in] | 0.875 in |
| Discharge connection mounting torque [Nm] | 90 N-m |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 380 V |
| Discharge connection sleeve pipe size [in] | 0.75 in |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 1.72 Ohm |
