MSTBVAL 2,5/ 8-G

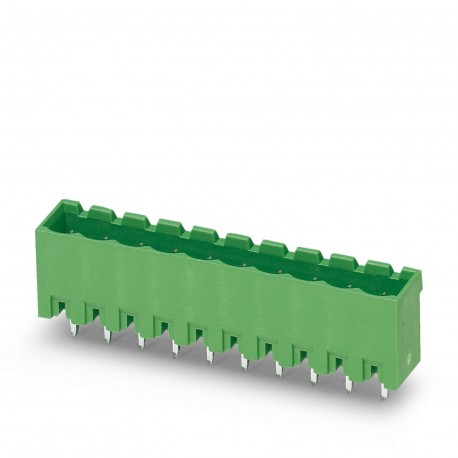

MSTBVAL 2,5/ 8-G 1800539 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3000 in stock
Key Specifications
GTIN:4046356524513
Orderkey:1800539
Packing unit:1
Color (Dimensions):green
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356524513 |
| Orderkey | 1800539 |
| Packing unit | 1 |
| Color (Dimensions) | green |
| Custom tariff number | 85366930 |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 12 mm |
| Range of articles (Dimensions) | MSTBVA 2,5/..-G |
| Nominal current IN (Dimensions) | 12 A |
| Number of positions (Dimensions) | 8 |
| Dimension a (Key Commercial Data) | 35 mm |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Pin dimensions (Key Commercial Data) | 1 x 1 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 5 mm |
Product Description
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 8, nu
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
