MSTBVA 2,5/15-G AU

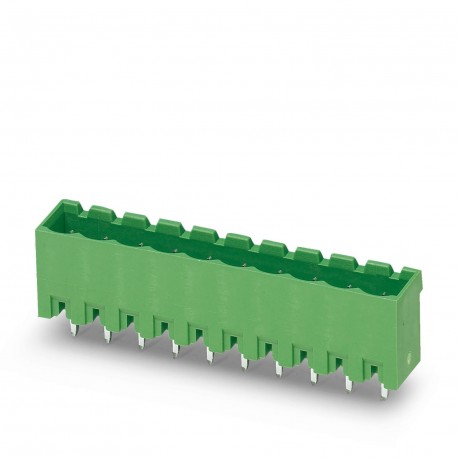

MSTBVA 2,5/15-G AU 1746240 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3952 in stock
Key Specifications
GTIN:4017918217006
Orderkey:1746240
(General):CSA
(Drawings):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918217006 |
| Orderkey | 1746240 |
| (General) | CSA |
| (Drawings) | |
| Packing unit | 1 |
| Pitch (Drawings) | 5 mm |
| UNSPSC 11 (ETIM) | 39121409 |
| Width (Drawings) | 77 mm |
| ETIM 3.0 (eCl@ss) | EC001121 |
| ETIM 4.0 (eCl@ss) | EC002637 |
| ETIM 5.0 (eCl@ss) | EC002637 |
| ETIM 6.0 (eCl@ss) | EC002637 |
| ETIM 7.0 (eCl@ss) | EC002637 |
| Height (Drawings) | 12 mm |
| Length (Drawings) | 8.57 mm |
| Color (Dimensions) | green |
| UNSPSC 13.2 (ETIM) | 39121409 |
| UNSPSC 18.0 (ETIM) | 39121409 |
| UNSPSC 19.0 (ETIM) | 39121409 |
| UNSPSC 20.0 (ETIM) | 39121409 |
| UNSPSC 21.0 (ETIM) | 39121409 |
| UNSPSC 6.01 (ETIM) | 30211810 |
| UNSPSC 12.01 (ETIM) | 39121409 |
| Custom tariff number | 85366930 |
| UNSPSC 7.0901 (ETIM) | 39121409 |
| Dimension a (Drawings) | 70 mm |
| Width [ w ] (Drawings) | 77 mm |
| Height [ h ] (Drawings) | 15.9 mm |
| Length [ l ] (Drawings) | 8.57 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| eCl@ss 4.0 (Classifications) | 27260700 |
| eCl@ss 4.1 (Classifications) | 27260700 |
| eCl@ss 5.0 (Classifications) | 27260700 |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440402 |
| eCl@ss 8.0 (Classifications) | 27440402 |
| eCl@ss 9.0 (Classifications) | 27440402 |
| Range of articles (Dimensions) | MSTBVA 2,5/..-G |
| Nominal current IN (Dimensions) | 12 A |
| Number of positions (Dimensions) | 15 |
| Rated voltage (II/2) (Dimensions) | 400 V |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Length of the solder pin (Drawings) | 3.9 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
Product Description
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Gold, contact type: Male, Number of potentials:
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
DiagramType: MVSTBW 2,5/..-ST AU with MSTBVA 2,5/..-G AU
