In Stock Hot Product
MSTBO 2,5/ 3-G1L BUGY

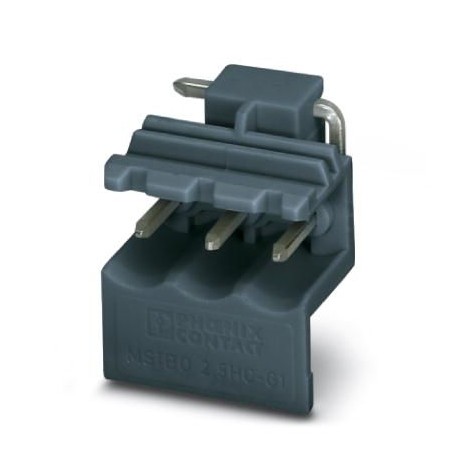

MSTBO 2,5/ 3-G1L BUGY 2853145 PHOENIX CONTACT Feed-through header
$0.00USD
4878 in stock
Key Specifications
GTIN:4017918423742
Note:Made to Order (non-returnable)
Orderkey:2853145
(General):CSA
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918423742 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2853145 |
| (General) | CSA |
| Packing unit | 50 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 15 mm |
| Range of articles (Dimensions) | MSTBO 2,5/..-G1L |
| Nominal current IN (Dimensions) | 12 A |
| Insulating material (Dimensions) | PBT |
| Number of positions (Dimensions) | 3 |
| Dimension a (Key Commercial Data) | 10 mm |
| Maximum load current (Dimensions) | 12 A |
| Rated voltage (II/2) (Dimensions) | 400 V |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Weight per Piece (excluding packing) | 1.830 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | IIIa |
| Rated surge voltage (II/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/2) (Dimensions) | 4 kV |
| Rated surge voltage (III/3) (Dimensions) | 4 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
